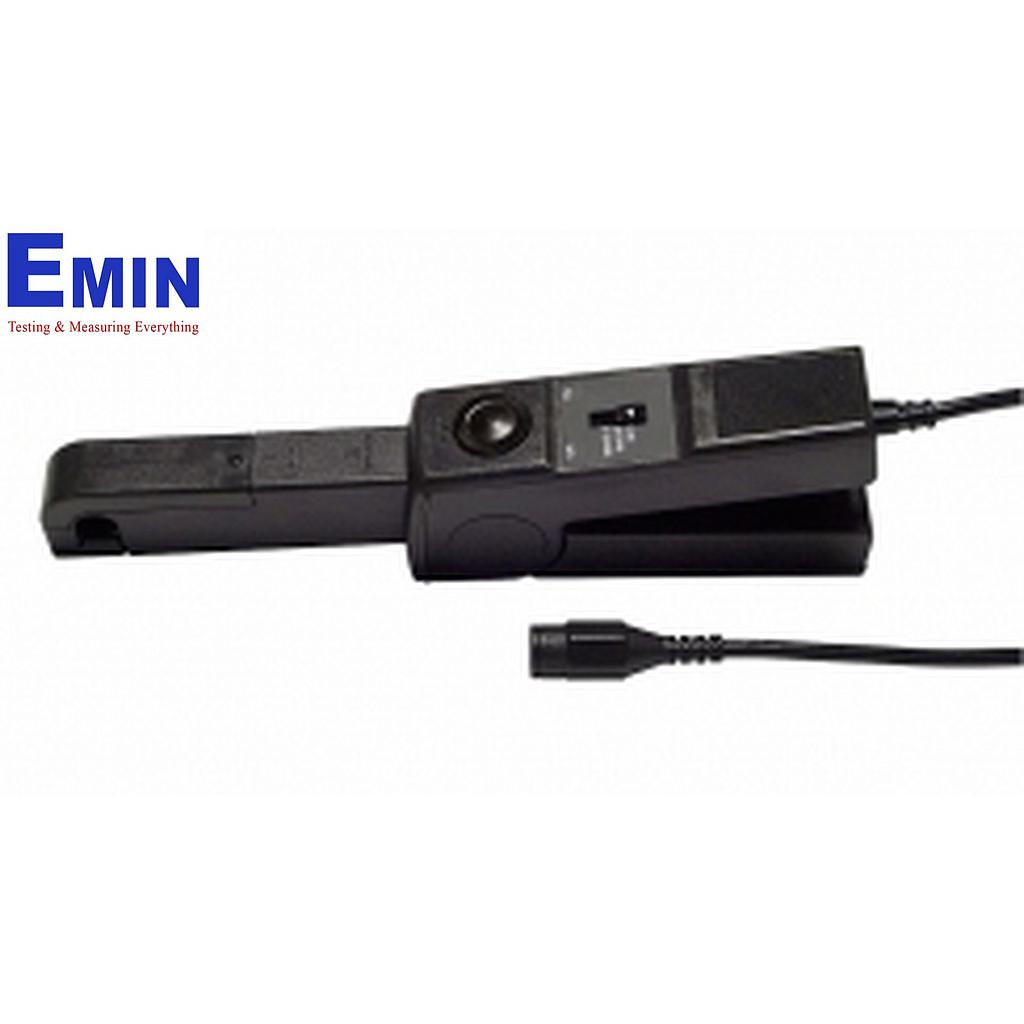

Chauvin Arnoux PAC 12 AC/DC 电流钳 (P01120072, 600A, 适用于示波器)

Manuafacturer: Chauvin Arnoux
Model : PAC 12
Item: P01120072
Warranty : 12 month

- Input
+ Range: 0.2 A - 60 A đỉnh; 0.4 A - 60 A DC; 0.5 A - 600 A peak ; 0.5 A - 600 A DC
+ AC: yes
+ DC : yes
- Output / Connections
+ Current:
+ Voltage: 600 mV peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 A / 10 mV; 1 A / 1 mV
+ Automatic DC zero: yes
+ Bandwidth (frequency in Hz): DC - 10kHz
+ Typical accuracy:  ≤ 1.5%; ≤ 2%

Detail

datasheet
user guider
catalog vietnamese
catalog english

Description

The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents.

2 forms are proposed to clamp cables up to 30 mm or 42 mm in diameter, as well as small busbars.
The range comprises PAC1x models and PAC2x models for higher currents.
When used with an oscilloscope, this isolated current sensor has 2 sensitivities and allows you to view currents with a bandwidth of up to 10 kHz and peak current up to 600 A DC or peak.
It is equipped with a a simplified ZeroDC adjustment system and a deactivatable automatic standby function.

Main features of the PAC12 clamp:

  • Rated current: 400 A AC/600 A DC
  • Output signal: DC and AC voltage
  • Output / input ratio: 10 mV / A, 1 mV / A
  • Output via coaxial cable and isolated BNC male plug
