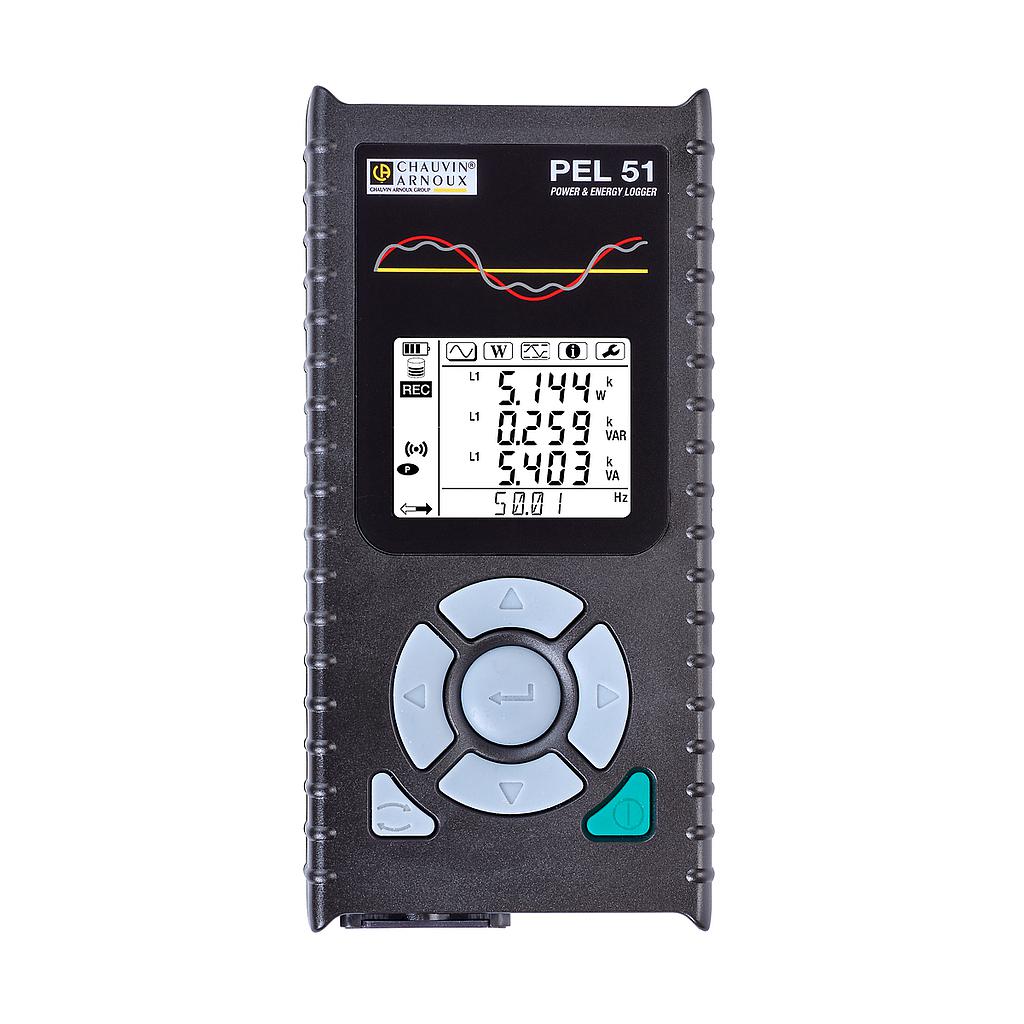

Chauvin Arnoux PEL51 电力和能量记录仪 (with 1 MA194-250; 1 phase)

General functions

- Display:  Multi-display backlit LCD

- Types of installations:  Single-phase

- Number of channels:  1V/1I

- Network frequency:  50 and 60 Hz

- Voltage:  10 V to 690 V

- Ratios:  Yes

- Power/energy values:  P, Pf, N, S, Qf, D / Up to 4 Exa

- Min – Max:  Yes

- THD:  Yes

Additional functions

- Acquisition rate : 1 measurements / s

- Aggregation:  1 min to 60 min

- Storage mode:  SD / SD-HC card; 8 GB (expandable to 32 GB)

- Ethernet : Yes (via simplified Wifi)

- Safety:  IEC 61010 CAT III 600 V

- Power supply:  Via the measurement phase (90 – 690 V)

- Battery:  NiMH – Battery life 1 hour

- Dimensions:  180 x 88 x 87 mm

- Weight:  400 g

- Casing:  IP54
