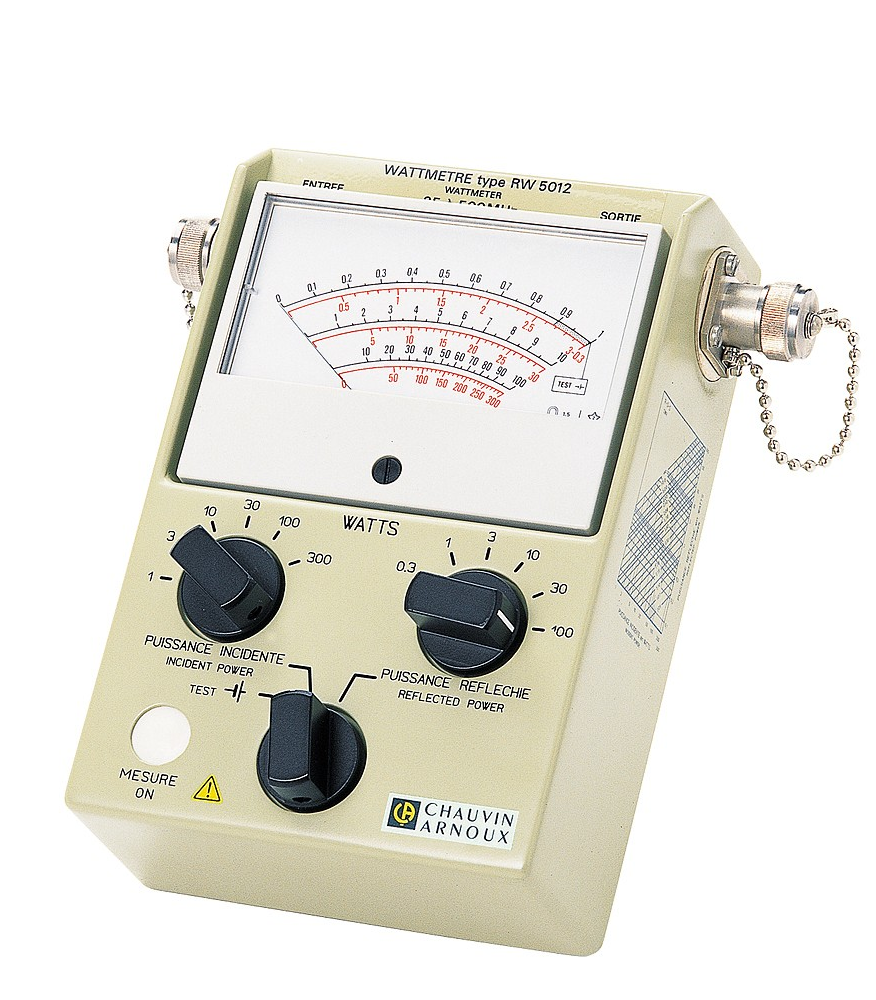

Chauvin Arnoux RW5012（P01255104）反射计瓦特表 / RF / 微波 / 模拟

- Frequency: 25 to 500 MHz
- Power:
+Incident: 1 W to 300 W
+Reflected: 0.3 W to 100 W
- Accuracy: ± 6 %
- Use: VHF, police networks
- Impedance: 50 Ω
- Insertion loss: < 0.1 dB
- Residual S.W.R.:≤1.15
- Input and output connectors: N female
- Power supply:2 x 1.5 V batteries ; one 9 V battery for the RW 511
- Operating temperature:0 to +50°C
- Weight: approximately 1.4 kg
- Dimensions (l x h x d) : 180 x 120 x 60 mm

datasheet
user guider

Description

The ORITEL RW5012 directional wattmeter is designed for use during the commissioning and maintenance of telecommunication stations of up to 500 MHz, FM, TV, police, national environment and fire protection agencies and mobile telephony networks in particular.
It measures the power supplied by a transmitter and the power reflected by the "feeder-antenna" in order to determine antenna suitability.

1. Operation from 25 to 500 MHz

1. Measurement from 100 mW to 300 W in CW mode

1. Rugged and rain-proof
2. Very long battery life (several months)
