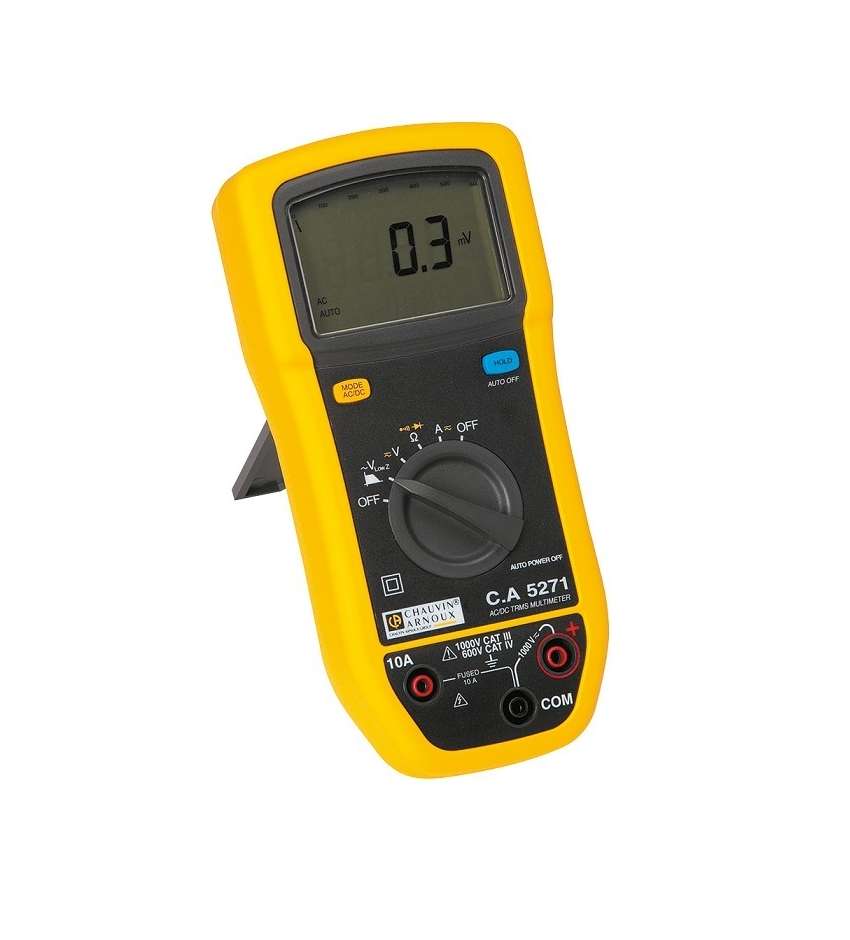

Chauvin Arnoux C.A 5271 数字万用表 (0.2%, True RMS)
制造商: Chauvin Arnoux Model: C.A 5271 P/N: P01196771 来源: France - 报价要求
- 联系
Specifications
- Display: 6,000 counts
- Bargraph: 61 + 2 elements
- Acquisition: TRMS AC /DC
- Measurement range: 5 measurements / second
- Autorange / Deactivatable : Yes / No
- Automatic AC /DC detection: Yes
- Vdc:
+ Ranges: 600 mV / 6V / 60V / 600 V / 1,000 V
+ Typical accuracy: 0.2% + 2 cts
+ Resolution: 0.1 mV to 1 V
- Vac:
+ Ranges: 600 mV / 6 V / 60 V / 600 V / 1,000 V
+ Resolution: 0.1 mV to 1 V
+ Bandwidth: 40 Hz to 3 kHz
- VLowAC (low impedance + low-pass filter)
+ Ranges: 600 mV / 6V / 60V / 600V / 1,000 V
+ Resolution: 0.1 mV to 1 V
- Adc
+ Ranges: 6 A / 10 A
+ Resolution: 0.001 A to 0.01 A
- Resistance:
+ Ranges: 600 Ω/ 6,000 Ω/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ
+ Resolution: 0.1 Ωto 0.1 MΩ
- Audible continuity: yes
- Test diode: yes
- Hold: yes
- Automatic power-off: yes
- Power supply: 1 x 9 V
- Dimensions / weight : 90 x 190 x 45 / 400 g
State at delivery: delivered with a set of banana leads, a set of test probes, a 9 V battery and
a CD containing the operating manual and the start-up guide.
datasheet
user guider
catalog vietnamese
catalog english
With its IP54 protection, the design of the C.A 5271 is particularly compact, making it very easy to handle. To make it easy to read, the double 6,000-count display is equipped with a 61 + 2-segment bargraph with dual-mode remanent effect. For greater effectiveness, the bargraph is equipped with a central zero.
In safety terms, the C.A 5271 can be used for all 600 V CAT IV applications.
The C.A 5271 is designed and manufactured in France by CHAUVIN ARNOUX and comes with a 3-year warranty.
CAT IV 600V / CAT III 1,000V
TRMS measurements
Large 6,000-count display and 61+2-segment bargraph
Auto AC/DC selectioon
Autorange
VLowZ low-impedance voltage measurement with low-pass filter
1,000 V
10 A
Resistance / audible continuity
IP54
3-year warranty
