Chauvin Arnoux C.A 5273 数字万用表 (0.2%; True RMS; temperature)

Specifications
- Display: 2 x 6,000 counts with backlighting
- Bargraph: 61 + 2 elements, dual mode (full scale/central zero)
-  Acquisition: TRMS AC /DC
-  Measurement range: 5 measurements / second
- Autorange / Deactivatable : Yes / yes
- Automatic AC /DC detection: Yes
- Vdc:
+ Ranges: 600 mV / 6V / 60V / 600 V / 1,000 V
+ Typical accuracy: 0.2% + 2 cts
+ Resolution: 0.1 mV to 1 V
- Vac:
+ Ranges: 600 mV / 6 V / 60 V / 600 V / 1,s000 V
+ Resolution: 0.1 mV to 1 V
+ Bandwidth: 40 Hz to 3 kHz
- VLowAC (low impedance + low-pass filter)
+ Ranges: 600 mV / 6V / 60V / 600V / 1,000 V
+ Resolution: 0.1 mV to 1 V
- Adc
+ Ranges: 6 A / 10 A
+ Resolution: 0.001 A to 0.01 A
- Resistance:
+ Ranges: 600 Ω/ 6,000 Ω/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ
+ Resolution: 0.1 Ωto 0.1 MΩ
- Audible continuity: yes
- Test diode: yes
- Hz:
+ Ranges: 600 Hz / 6 kHz / 50 kHz
+ Resolution: 0.1 Hz to 10 Hz
- Capacity:
+ Ranges: 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF
+ Resolution: 0.001 nF (1pF) to 10 μF
- T°:
+ Ranges: -59.6 °C to +1,200 °C
+ Resolution: 0.1° to 1 °
- Hold: yes
- Automatic power-off: yes
- Power supply: 1 x 9 V
- Dimensions / weight : 90 x 190 x 45 / 400 g

State at delivery: delivered with a set of banana leads, a set of test probes, a 9 V battery and
a CD containing the operating manual and the start-up guide + additional K thermocouple temperature sensor

Details

datasheet
user guider
catalog vietnamese
catalog english

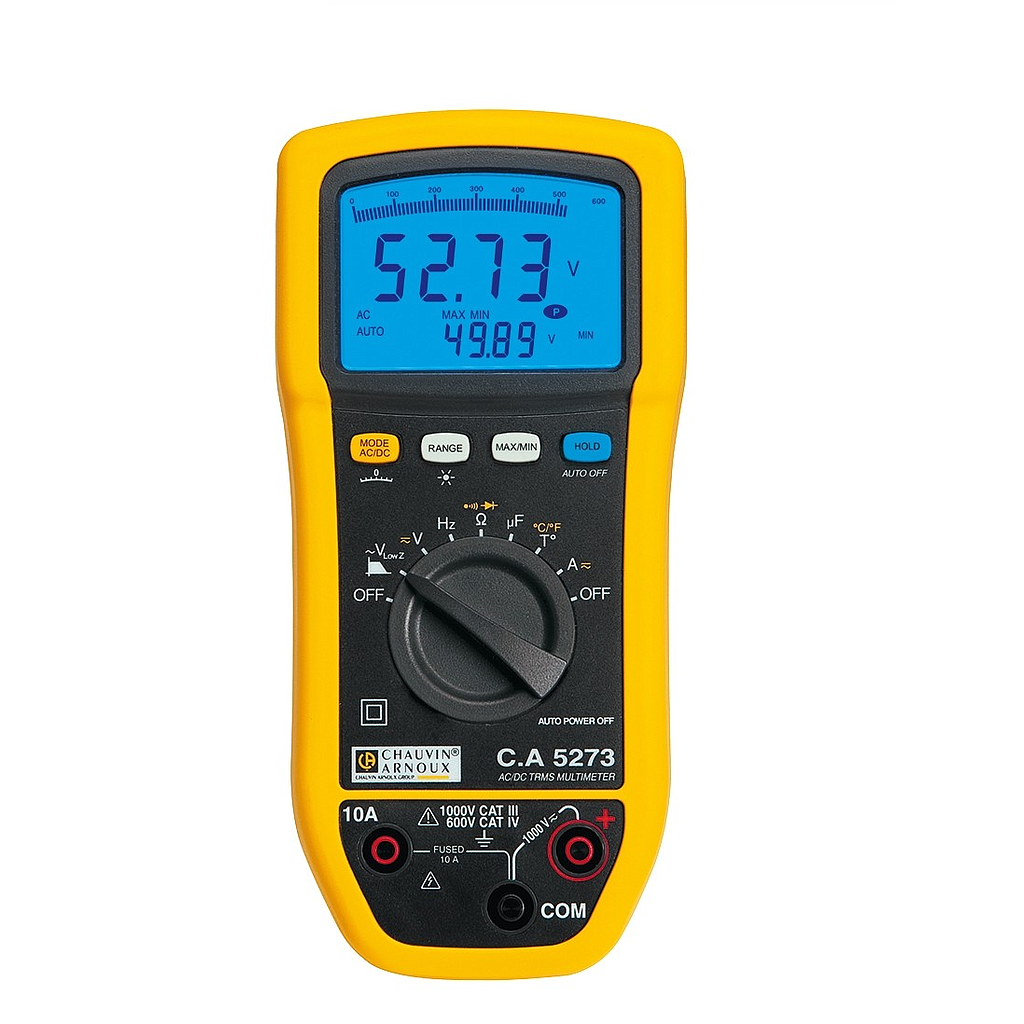

The C.A 5273 is a comprehensive multimeter for electrical maintenance of installations and small AC and DC machines, with a double 6,000-count backlit display and a 61+2-segment bargraph with remanent effect.
Its 600V CAT IV safety is backed by IP54 ingress protection.
Designed and manufactured in France by CHAUVIN ARNOUX, this multimeter comes with a 3-year warranty.
    CAT IV 600V / CAT III 1,000V
    TRMS measurements
    Bi-mode double 6,000-count backlit display and 61+2-segment bargraph (full scale / central zero)
    Auto AC/DC selection
    Automatic or manual range selection
    VLowZ low-impedance voltage measurement with low-pass filter
    1,000 V
    10 A
    Resistance / audible continuity
    Temperature
    Capacitance
    Max / Min storage
    3-year warranty
