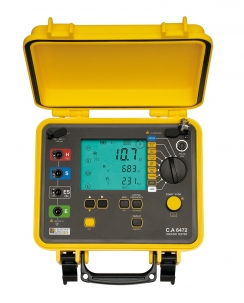

Chauvin Arnoux C.A 6472 专业型接地电阻测试仪 (0.001 -100 kΩ)

Specifications
- Measurements: Earth / Selective earth / Resistivity / Coupling / Continuity / Ground potential / Pylon earth (with C.A 6474)
- Type: Methods: 3P / 4P / 4P with clamp / 2 clamps
- Measurement range: 0.001 to 100 kΩ
- No-load voltage: 16 V or 32 V (as required)
- Frequency: 41 Hz to 5078 Hz
- Frequency sweep: Yes
- Auxiliary rod resistance measurement: Yes: 0.01 Ω to 100 kΩ
U disturbance
- Measurement : 0,00 to 65,0 V
- Noise rejection: Yes
- Power supply: Rechargeable NiMH battery
- Display: 3 digital LCD screens
- Storage: 512 storage location
- Communication output: Optical / USB link
- Safety: IEC 61010 & IEC 61557
- Dimensions / weight: 272 x 250 x 128 mm / 3.2 kg

State at delivery: delivered  with  mains  adapter  +  2P  mains  plug  for  battery  recharging  on  mains,  data  export software + optical / USB communication cable, 2 x C182 clamps, 2 safety leads, 5 operating manuals (one per language) on CD-ROM, 5 simplified operating manuals (one per language), 5 identification labels (one per language), 1 bag.

Accessories (optional):
- MN82 clamp (diam. 20mm) (delivered with 1 x 2m cable for ES terminal connection) (P01120452)
- C182 clamp (diam. 20mm) (delivered with 1 x 2m cable for ES terminal connection)(P01120333)
-  C.A 6472 – C.A 6474 connection cable (P01295271 )
- 15 m BNC / BNC cable (P01295272)
- 5 m AmpFlex®flexible current sensor for C.A 6474. (P01120550)
- Set of 12 AmpFlex® identification rings (P01102045)
- Set of 3 adjustable clamps (P01102046 )
- 5 m green cable for C.A 6474 (E terminal connection). (P01295291)
- 5 m black cable for C.A 6474 (ES terminal connection)(P01295292)
- Spade lug/Ø 4 mm banana plug adapters (P01102028 )
- Calibration loop(P01295294)
- AmpFlex®flexible current sensors: other lengths available on request

Details

datasheet

user guide

catalog vietnamese

catalog english

Tester for all types of earth measurements, including pylon earth measurements (with the C.A 6474) - soil resistivity - earth coupling - ground potential - continuity & resistance
The C.A 6472 can be used for quick, comprehensive surveys of all earthing configurations, offering all the necessary earth measurement functions in a single instrument.
When used with the C.A 6474, it can also perform pylon earth measurements, making it a unique but essential tool for diagnostics and maintenance on pylon networks.
The C.A 6472 offers the possibility of analysing the frequency behaviour of the earth connections thanks to its extensive measurement frequency range (41 to 5,078 Hz). The use of a high-frequency measurement signal makes it possible to assess the behaviour of an earthing circuit in the presence of lightning.
Functions:
    3P measurement up to 10 kΩ and stray voltages up to 60 V RMS
    4P and selective 4P measurement
    Earth loop measurement with 2 clamps from 0.01 Ω to 500 Ω
    Earth coupling measurement
    Soil resistivity measurement: simply program the distances used for the measurement and the tester then calculates r using the Wenner oe Schlumberger methods
    Ground potential measurement
    Continuity and resistance measurement
    Pylon earth measurement with the C.A 6474
Other specifications:
    Storage of 512 test results
    USB optical link
    Ground Tester Transfer PC software to process the stored data
    Power supply: NiMh battery with external charger
    IP53 protection
    IEC 61557 -1 -4 -5
    IEC 61010 50V CAT IV
    Dimensions: 272 x 250 x 128 mm, 3 kg
