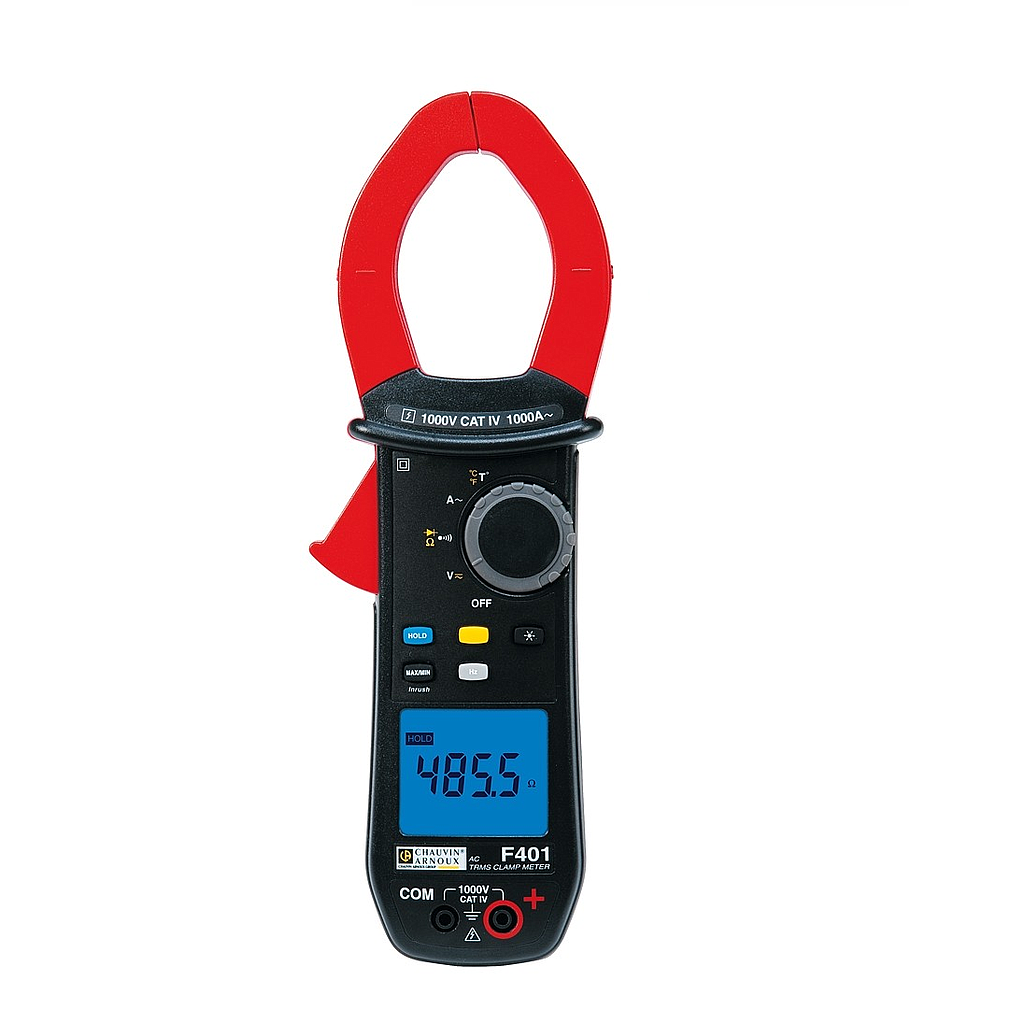

Chauvin Arnoux F401 Clamp meter (AC 1000A; True RMS)

Specifications
- Clamping diameter : Ø 48 mm
- Display: LCD
- Resolution:  10000 counts
- Number of values displayed : 1
- Type of acquisition: TRMS [AC]
- Autorange function: yes
- Automatic AC/DC detection: yes
- Aac: 1000A
- Best accuracy: 1% R + 3 counts
- Vac: 1000V
- Vdc: 1400 V
- Best accuracy: 1% R + 3 counts
- Frequency of V / I: yes/-
- Resistance: 100 kΩ
- Audible continuity: Adjustable from 1 Ω to 999 Ω
- Diode test (semi-conductor junction): yes
- Single-phase and total three-phase power values: yes
- Temperature(K type): °C: -60.0 to +1,000.0 °C
 Functions
- Overcurrent measurement: yes
- Motor Inrush: yes
- Load evolution (TrueInrush): yes
- Hold: yes
- Min / MAX: yes
- Auto Power Off : yes
- Electrical safety according to IEC 61010: 1000 V CAT IV - 1000 V CAT III
- Power supply : 4 x 1.5 V AA
- Dimensions / Weight: 92 x 272 x 41 mm / 600 g

State at delivery:
- 1 set of PVC cables (black/red)
Ø 4 mm isolated elbowed male banana plug
Ø 4 mm isolated straight male banana plug
- 2 test probes (black/red); Ø 4 mm isolated female plug
- 1 wire thermocouple with integrated; Ø 4 mm isolated banana connections with 19 mm spacing
- 1 x 9 V 6LR61 battery; 4 x 1.5V LR03 batteries for F400/600 clamps
- Multifix bag: 120 x245 x 60 mm for F200 clamps; 120 x320 x 60 mm for F400/600 clamps

Detail

datasheet
user guider
catalog vietnamese
catalog english

Description
To deal with the highest level of low-voltage electrical installations, the F400 Series has a high protection rating and is ideal for maintenance, testing, monitoring and diagnostics on medium-power installations.
Equipped with a fast 12-bit TRMS digital acquisition system, F401 clamps offer particularly accurate measurements whatever the signal's waveform.
Specifications:
    Clamping diameter: 48 mm
    Current: 1,000 A AC
    AC and DC voltage up to 1,000 V
    Resistance and audible continuity
    Temperature
    Automatic AC/DC detection
    TrueInrush current measurement
    Hold, Min, MAX
    CAT IV 1,000 V
    IP54 protection rating
