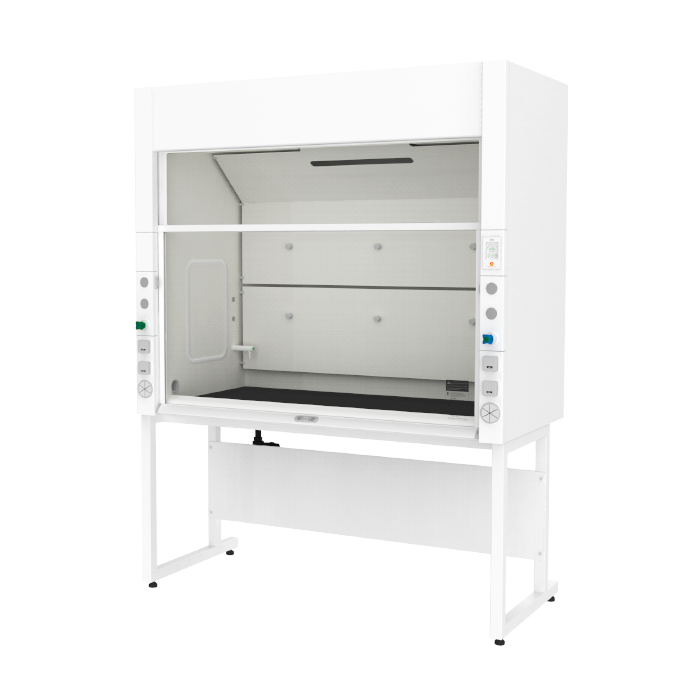

CHC lab XFL-BA-210 Fume Hood Basic 2.1m

Size (W×D×H, mm) :

+Outer:   2100×850×2365

+Inner:   1895×675×1200

Material:

+Outer:        Steel Plate (Epoxy Powder Coated)

+Inner:        Phenolic Laminate

+Worktop:        Epoxy 25 mm (option : Phenolic Laminate, STS, PVC, P.P.)

+Sash:        Tempered Glass 5 mm

+Frame:        Steel Pipe (Epoxy Powder Coated)

Types of Sashes:        Vertical sash

Cup Sink:        1 EA

Power Socket:        220V×4EA (Left, Right 2EA each)

Lamp (LED):        25 W×2 EA

Controller:        CHC Monitor (Option: CHC VAV Contoller, Schneider Contoller, ON/OFF Switch)

Earth Leakage Breaker:        Ceiling Distribution Box (including Terminal Block and Earth Leakage Breaker)(option : Front Earth Leakage Breaker)

Valves:        Water×1EA, N₂×1EA (Option: Additional Valve 4EA)

Exhaust Port:        P.P. Ø250

Power Consumption:       50 W

Details

XFLO BASIC is a representative fume hood of CHC LAB, and it provides a pleasant experimental environment while protecting researchers from harmful gases through a design that meets domestic and international standards and based on differentiated technology.

Acquiring international performance certifications

XFLO-BA has proven its stability and technology by acquiring ASHRAE110 and EN14175, international certifications for laboratory fume hoods.

Designing an optimized fluid flow

For the safe discharge of contaminants in the fume hood, the fluid flow is optimized by designing the delicate internal structure using the CFD fluid program.

CHC Monitor

By applying an optimized self-developed monitoring system to the fume hood of CHC LAB, the wind speed of the fume hood is measured in real time and the status is delivered to the user.

Emergency discharge system (CHC VAV Controller application options)

Through the Emergency Discharge function, it is possible to quickly discharge the internal air to the outside by increasing the discharge air volume in the event of an emergency, such as the generation of a large amount of harmful gas.

Safety Sash Stopper & Guard

By artificially stopping the sash at an appropriate height of 500mm, it prevents exposure of harmful substances due to sudden opening.
