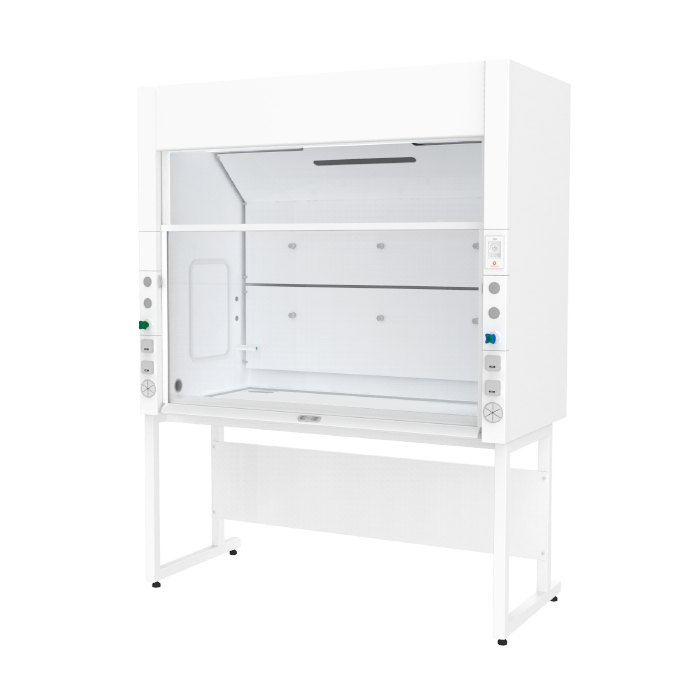

CHC lab XFL-MC-150 Acid Fume Hood 1.5m

Size (W×D×H, mm) :

+Outer:        1500×850×2365

+Inner:    1295×675×1200

Material:

+Outer:        Steel Plate (Epoxy Powder Coated)

+Inner:       P.P.

+Worktop: P.P.

+Sash:        Tempered Glass 5 mm

+Frame:        Steel Pipe (Epoxy Powder Coated)

Types of Sashes:    Vertical sash (Option: 2-tier Combination Sash)

Cup Sink:        1 EA (Option: 2 EA for 1500~2400)

Power Socket:        220V×4EA (Left, Right 2EA each)

Lamp (LED):        25 W×1 EA

Controller: CHC Monitor (Option: CHC VAV Contoller, Schneider Contoller, ON/OFF Switch)

Earth Leakage Breaker:    20A, 2 Units

Valves:        Water×1EA, N₂×1EA (Option: Additional Valve 4EA)

Exhaust Port:        P.P. Ø250 (option : P.P. Ø300)

Power Consumption:        25 W

Details

Internal finish of acid resistant material

The inside of the XFL-BA product is finished with an acid-resistant material to prevent corrosion of the product by acid.

Designing an optimized fluid flow

For the safe discharge of contaminants in the fume hood, the fluid flow is optimized by designing the delicate internal structure using the CFD fluid program.

CHC Monitor

By applying an optimized self-developed monitoring system to the fume hood of CHC LAB, the wind speed of the fume hood is measured in real-time and the status is delivered to the user.

Emergency discharge system (CHC VAV Controller application options)

Through the Emergency Discharge function, it is possible to quickly discharge the internal air to the outside by increasing the discharge air volume in the event of an emergency, such as the generation of a large amount of harmful gas.

Safety Sash Stopper & Guard

By artificially stopping the sash at an appropriate height of 500mm, it prevents exposure to harmful substances due to sudden openings.
