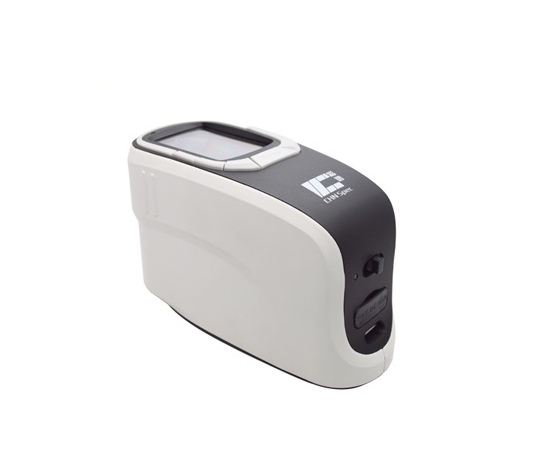

CHN SPEC CS-580 便携式分光光度仪

  • 制造商: CHN SPEC
    Model: SPEC CS-580
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • Price (exclude tax) 72,850,000 VND
    Price (include tax) 80,135,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Illumination: D/8, SCS, ETC, SCI, SCE
Size of integrating sphere: Φ40mm,Alvan diffused reflection surface coating
Illumination Light source: CLEDs(entire wavelength balanced LED light source)
Sensor: blue light enhanced sensor array
Wavelength range: 400-700nm
Wavelength interval: 10nm
Half spectral width: 5nm
Reflectivity range: 0-200%
Reflectivity resolution: 0.01%
Observation angle: 2°/10°
Measurement time interval: 2 seconds
Measurement time: 1 second
measuring aperture: Φ8mm
Color space: CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Color difference formulas: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00
Interface: USB
Data storage: 20000 test results
Size: 181*73*112mm(L*W*H)
Weight: about 550g(does not include battery weight)
Display: True color screen that includes all colors
Standard accessories: DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white
calibration tube,protective cover, spire lamella, portable bag, electronic color charts
Optional accessories: powder molding device, micro printer, measurement and test report

Details

Datasheet

High performance-price ratio among international similar products

  •   As China first spectrophotometer, integrates multiple innovative technical characteristic, and extends
  the boundary of on-site color quality control during production.
  • It can be applied to laboratories, factories and on-site operations, and can achieve the best color
 management across all application fields quality control;
  •  Allows medium and small companies to obtain high performance color management system
 with relatively low price;
  •  The software contains all necessary color equations, standard light sources, and a large number
 of standards for specific industries and applications;
  • Operation system supports both English and Chinese interfaces, and we offer to design the interface
in other languages based on the need of our customers.
Professional design, powerful instrument functions

  • Professional horizontal design and it does not have any moving parts, which avoids the shaking of the
 instrument during measurement process. This makes the measurement more accurate;
  • PC software for easy measurement data management;
  • Can measure both SCI and SCE at the same time.
  • Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement
 records for each standard sample;
  • Adding powder test accessories, easily measure the color of the Powder, granules and other samples.

  • First spectrophotometer in China
  • Obtained China Metrology Accreditation Certificate
  • Large data storage space
  • Large TFT display screen
  • Modern and fashionable design based on human engineering
  • Easy to use operation modes and compact operation interface
  • Pre-locating panel design for easy instrument calibration
  • Uses LED light source; high capacity rechargeable lithium-ion battery
  • Can measure both SCI(specular included)and SCE(specular excluded) at the same time
  • Includes PC software to manage data
  • Can connect to mini-printers for printing



Type

CS-580

Illumination

d/8(Diffused lighting, 8 degrees observe angle)
SCS optical engine(light splitting and integration system),ETC(real time calibration
 technology), SCI(specular reflection included)/SCE(specular reflection excluded)
simultaneous measurement

(conform to CIE No.15
ISO 7724/1ASTM E1164DIN 5033 Teil7 JIS Z8722 Condition c standards)

Size of integrating sphere

Φ40mmAlvan diffused reflection surface coating

Illumination Light source

CLEDs(entire wavelength balanced LED light source)

Sensor

blue light enhanced sensor array

Wavelength range

400-700nm

Wavelength interval

10nm

Half spectral width

5nm

Reflectivity range

0-200%

Reflectivity resolution

0.01%

Observation angle

2°/10°

Measurement light source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,
NBF,TL83,TL84

Data being displayed

SPD distribution/datasample color valuescolor difference values/graphpass/fail results
color error tendency
color simulationdisplay measurement areahistory data color simulationmanual input standard samplegenerate measurement report

Measurement time interval

2 seconds

Measurement time

1 second

measuring aperture

Φ8mm

Color space

CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance

Color difference formulas

ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00

Other colorimetric indices

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger,
 Ganz, Stensby),
YI(ASTM D1925
ASTM E313-00,ASTM E313-73),
Tint(ASTM E313,CIE,Ganz),
Metamerism index Milm, Stick color fastness, Color fastness

Repeatability

light splitting reflectivitystandard deviation within 0.08%
color values
ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on
test white board,
5 second intervals),Maximum
0.05

Battery capacity

rechargeable, 10000 continuous tests, 7.4V/6000mAh

Interface

USB

Data storage

20000 test results

Light source longevity

5 years, 1.5 million tests

Inter-instrument agreement

ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)

Size

181*73*112mm(L*W*H)

Weight

about 550g(does not include battery weight)

Display

True color screen that includes all colors

Work temperature range

0~45, relative humidity 80% or below( at 35°C ),no condensation

Storage temperature range

-25 to 55relative humidity 80% or below(at 35°C ),no condensation

Standard accessories

DC adapter, Lithium battery, manual, color management software, d
rive software, electronic manual, color management guide, USB cable, black/white
 calibration tube,protective cover, spire lamella, portable bag,
 electronic color charts

Optional accessories

powder molding device, micro printer, measurement and test report

Color matching system

not match

UV light source

Does not include UV light source
