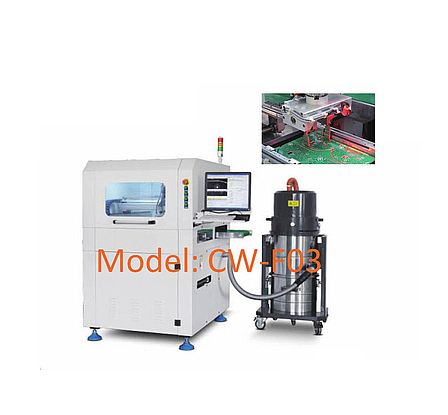

创威CW-F03 PCB切板机

Machine Size: 1000*1200*1533mm
Weight: Approx 1900kgs
Max PCB Size: 350*350mm
PCB Thickness: 0.4-6mm
Transmission height: 900±50mm
Transmission direction: Left -> Right
Transmission speed: 1500mm/s(max)/adjustable
Feeding plate type: Section-type transportation guide rail
Rail width adjustment: Automatic
Communication signal of upper and lower computers: SMEMA
PCB Positioning: Upper and lower guide rail clamping
Picking system: 360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most
Cutting spindl/speed: Germany KAVO, 60,000rpm/min
Cooling type: Air compression
ESD monitoring: Yes
Automatic tool change: Yes
Cutting stress feedback: Yes
Break blade check: Yes
Cutting speed: 1-200mm/s
Cutting accuracy: ±0.5mm
Repeat positioning accuracy: ±0.01mm
Coordinate moving speed: 1000mm/s
Out plate type: ESD belt transportation/batch panel forwarding unit
Waste collection type: Out off the track
Procedure programming: GERBER drawing import/Editing program through visual system
Air supply: 5-8kg/cm2
Power supply: AC380V±5%, 50/60Hz, 3KW
