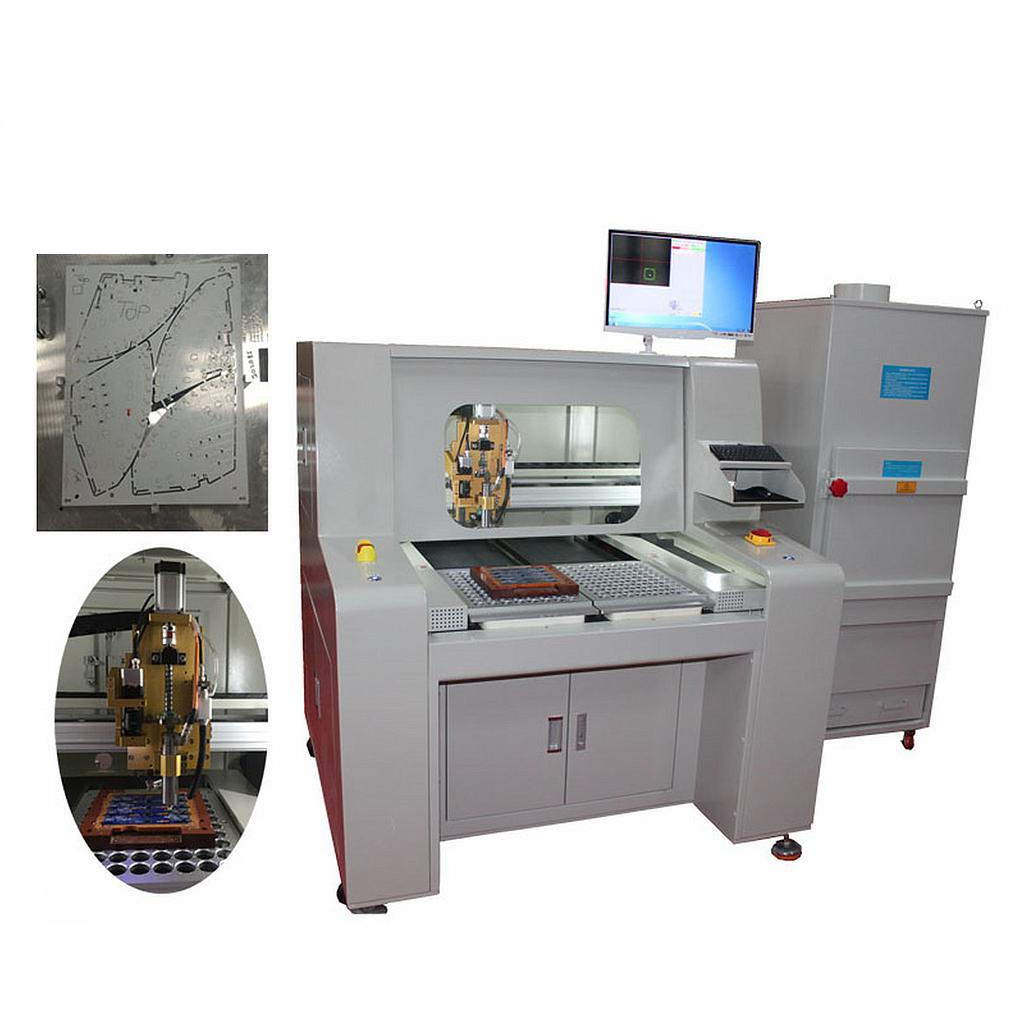

创威CW-F04 PCB切板机

Standard working area: 450*350mm
Power: 220V, 4.2KW
Manipulator Repeatability: ±0.02mm
Resolution: ±0.01mm
Loading Manual
Unloading: Manual
Panel Size: 450*350mm
Panel Thickness : 0.5-3.5mm
Spindle motor: 0.5kW Morning Star Spindle
Tool Change: Manual
Dust filtration system: 3KW Vacuum Cleaner
Vision system: High resolution CCD video camera
Programming: Vision assisted point to point manual teaching
Editing Function: Dry run vision assisted / test run mode
Machine weight: 500kgs
Machine dimension: 113*140*108cm
