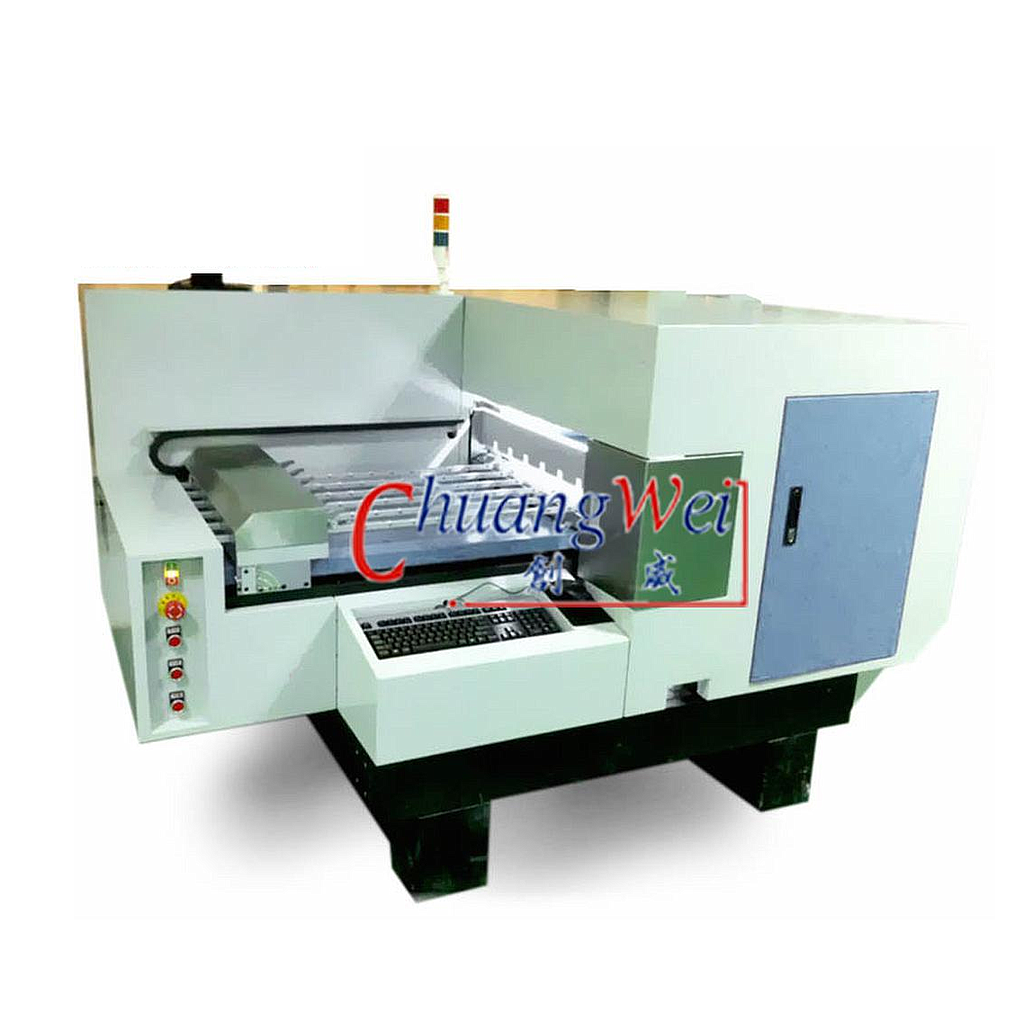

Chuang Wei CWV-680 V型计分机

Size: 1200 × 2280 ×1585mmL*W*H
Working Height: 920±50mm
Weight: 3000kg
Power Supply: AC 220V,50/60HZ
Capacity: 3.0KW
Air Pressure: 5kg/cm2
Working PlatformMax:680mm*630mm
Thickness: 0.3~3.2mm
Blade spec
Outer Dia:φ120mm; Inner Dia:φ25.4mm
Positioning Dowel: Dia:2MM(7PCS)
Min Distance between the first V score line & Pin hole: 4.5MM
Blade thickness: 2mm
V-groove Residual thickness accuracy: ±2mil
V-groove Pitch accuracy: ±2mil
V-groove Parallel precision: ±2mil
Blade Cutting Speed: 6,000R.P.M.
Cutting Speed: 0~50m/min
Displace SpeedMax : 70M/MIN
Dust Collector: 2in plumbing3.5KW
