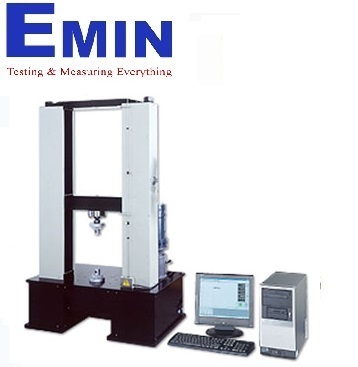

Cometech QC-500A2 电脑伺服拉(压)力试验机(500kN)

Manufacturer: Cometech

Model:  QC-500A2

Origin: Taiwan

Warranty: 12 months



Capacity:   500KN

Stroke(without grips):   1600 mm

Speed range:   0.1 ~ 300 mm/min

Speed accuracy:   0.1 ~ 3 mm/min ± 2%; 3 ~ 300 mm/min ± 1%

Space between columns:   550 mm

Force resolution:   1/20,000

Stroke resolution:   0.0001 mm

PC Connection:   USB

Motive force:   Servo motor driver

Transmission method:   Precise reducer, ball screw. It can reduce noise and transmission missing and increase transmission efficiency.

Power:   3 phase 200~240VAC,30A

Dimension:   150 × 85 × 295 cm

Weight:   2350KG
