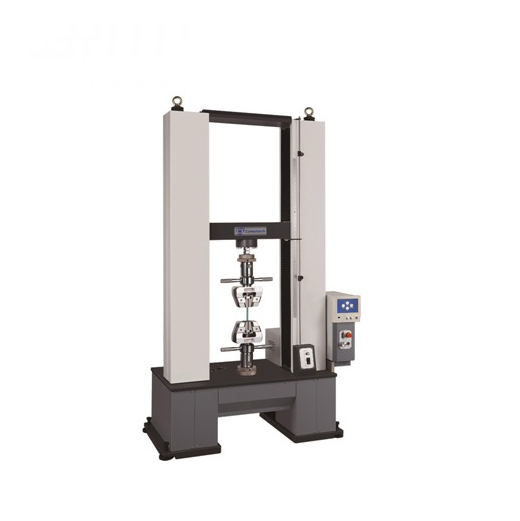

Cometech QC-502M1F 拉力试验机 (200kN)

Max. Capacity: 200kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Precision: 1/100,000

Force Resolution: 31 bits

Test stroke: 1100 mm (w/o grip)

Stroke resolution: 0.0001mm

Space between columns: 550 mm(680mm, 800mm Optional)

Speed range: 0.2 ~ 330 mm/min (Can be set by computer software )

PC-Port: RJ45(TCP/IP)(software optional)

Data sampling rate: 400Hz(Max.)

Motor type: Servo Motor

Power Supply: 3 phase 200~240VAC,20 A

Dimension: 140 x 66 x 235cm

Weight: 1250 kg

Option:

- Display panel: EM2FTP-001 or Software: SM1F0-04 or all (nessesary)

- Long extensometer QC-557

- Grips (nessesary)
