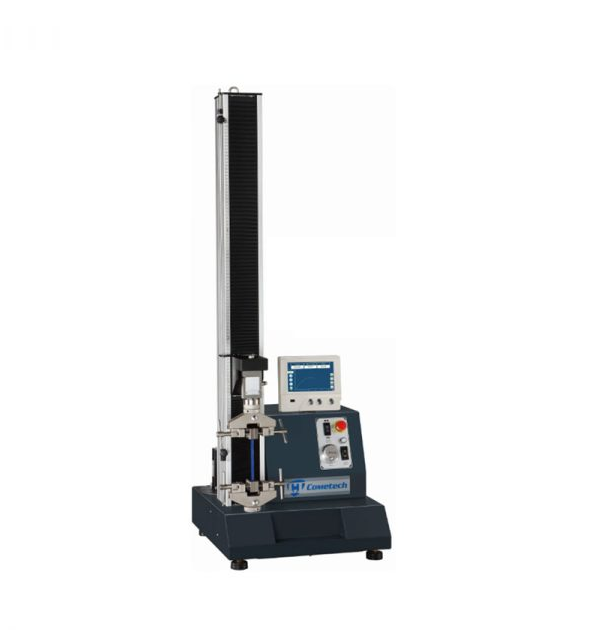

Cometech QC-508M1F 电脑伺服拉(压)力试验机 (5kN)

  • 制造商: Cometech
    Model: QC-508M1F
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Max. Capacity: 5kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution: 31 bits

Force Precision: 1/100,000

Test stroke: 800 mm (w/o grip)

Stroke resolution: 0.0001 mm

Space between columns: Ø70mm

Speed range: 0.2 ~ 1000 mm/min (Can be set by computer digital)

PC-Port: RJ45(TCP/IP) [software optional]

Data sampling rate: 400Hz (Max.)

Motor type: Servo Motor

Power Supply: Single phase 200 ~ 240VAC,5A

Dimension: 50× 53 × 145cm

Weight: 80 kg

Option:

- Display panel: EM2FTP-001 or Software: SM1F0-04 or all (nessesary)

- Long extensometer QC-557

- Grips (nessesary)
