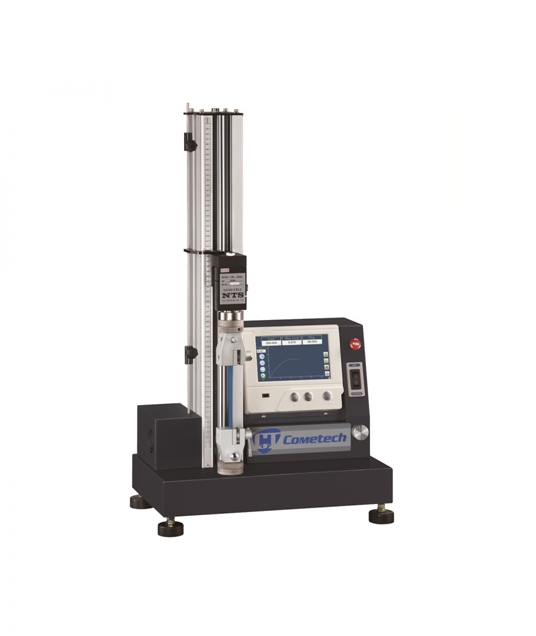

Cometech QC-513M1F 电脑伺服拉(压)力试验机 (5kN)

Max. Capacity: 5kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution: 31 bits

Force Precision: 1/100,000

Test stroke: 400 mm (w/o grip)

Stroke resolution: 0.0001 mm

Space between columns: Ø70mm

Speed range:  0.2 ~ 1000 mm/min (Can be set by computer digital)

PC-Port: RJ45(TCP/IP) [software optional]

Data sampling rate: 400Hz (Max.)

Motor type: Servo Moto

Power Supply: Single phase 200 ~ 240VAC,5A

Dimension: 50 x 53x 100cm

Weight: 65 kg

Option:

- Display panel: EM2FTP-001 or Software: SM1F0-04 or all (nessesary)

- Long extensometer QC-557

- Grips (nessesary)
