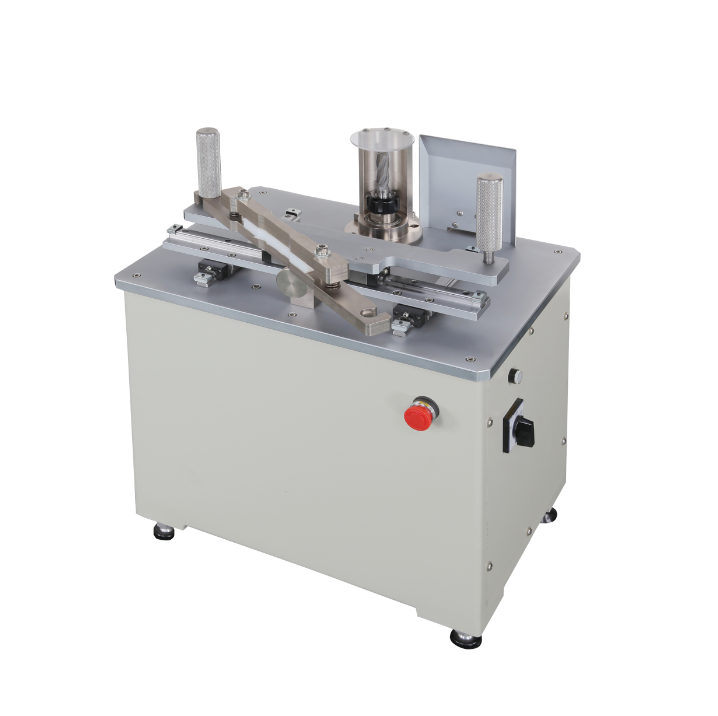

Cometech QC-603I 手动式试片裁切机

Material: Hardness of polymer specimen

Horse power: 600W

Cutting speed: 99 sector speed change

Speed range: 150~3500 rpm

Specimen thickness: 2 ~ 15 mm

Capacity for mold:

Length: 25-280mm Width: 20-70mm Height: 30mm

Minimum cutting R angle: R＝6 mm

Accessories:

1. With one dumbbell shape cutter, customized shape is also acceptable but cannot be wider than 100mm and longer than 250mm.

2. With transparent protection cover.

3. With vacuum function to assemble scrap keep it clean when operating.

4. Equipped with track to increase the stability, safety and fluency.

Power: Single phase, 110V or 220V(Designate)

Dimension: 47 × 40 × 45 cm (W x D x H)

Weight: 60 kg
