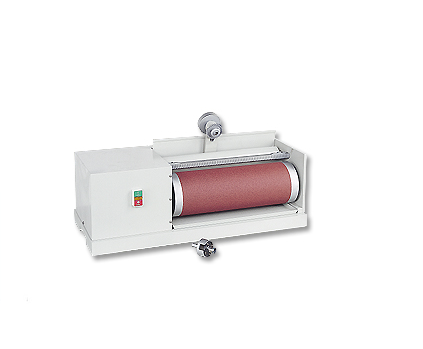

Cometech QC-618A DIN磨耗试验机

Rotary speed: 40 RPM

Sand paper: # 60

Drum: Diameter 150 mm

Abrasion stroke: 40 M

Abrasion speed: 19.2 mm/min

Specimen movement: 4.2 mm/each turn

Specimen: Diameter 16 mm, Thickness 6~16 mm

Tilt angle for specimen: 3°

Rotation speed of specimen: 0.9 RPM (ASTM) or 0 RPM (DIN) adjustable

Dimension: 81×32×36 cm

Weight: 90kgs

Power: 100-240 V / 50-60 HZ

Weight: 2.5N、5N(Weight2.5N、5N、7.5N、10N)

Accessories: Standard rubber (1 pc), one driller, brass brush (1 pc), pre-rub piece (1 pc), specimen cutter (1  pc), spacer (1 pc), sand paper (5 pcs), fix ring  (1 pc), specimen draw out bar (1 pc).
