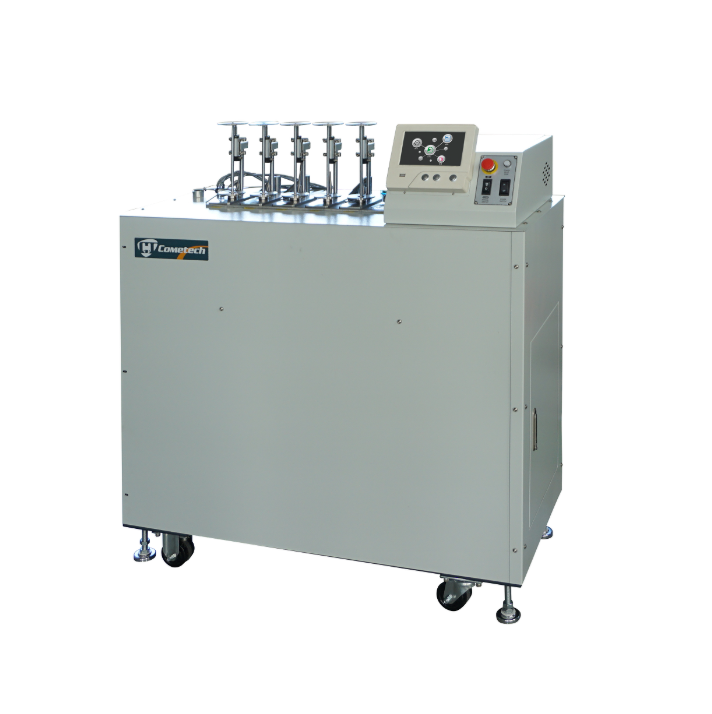

Cometech QC-656A 自动加热变形试验机
制造商: Cometech Model: QC-656A 来源: Taiwan 保障: 12 Month - 报价要求
- 联系
Temperature: Room temperature - 300℃
Temperature Control: 2℃ increase per minute (adjustable)
Weight: Weight support 2.7 N.
Each station has the following weights: 0.1N×1, 0.2N×2, 0.5N×1, 1N×1, 2N×2, 5N×1, 10N×1
Deflection Reading: 0.001~3.000 mm
Flexion Span: 100 mm, 64mm (101.6mm for options)
Specimen Support’s Surface: R=3.0 mm (able to add the Vicat heat deflection test head)
Specimen Dimension:
ASTM L=5”(127 mm), d=1/2 ”(12.7 mm), b=1/4”( 6.35 mm)
ISO edge wise L=120mm, d=10mm, b=4mm
ISO flat wise L=80mm, d=10mm, b=4mm
※Specimen deviation should be±0.1 mm
Temperature Equalization Method: Circulating flow
Cooling Method: Water cooling
Stations: 6 test stations
Oil Chamber Capacity: 25 L
Power: Sigle Phase 220VAC
Dimension: 48 x 110 x 125 cm
Weight: 230 kg (Empty); 250 kg (oil inlcuded)
