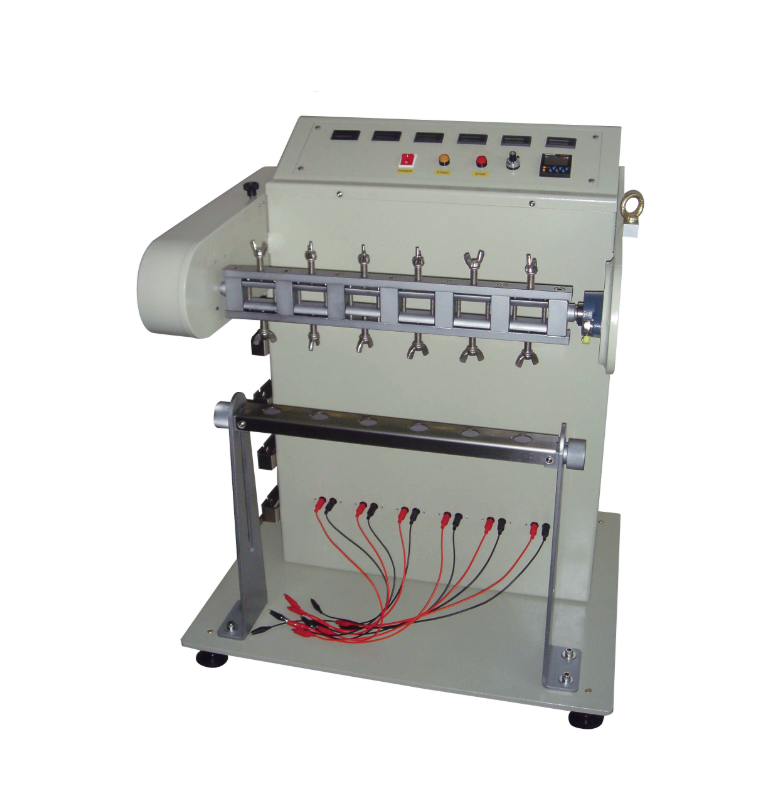

Cometech QC-659A 插头引线弯折试验机

  • 制造商: Cometech
    Model: QC-659A
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Jigs: 6 sets

Swing angle: ±30°、±45°、±60°、±75°、±90° (adjustable).

With angle indicator to identify the bending angle.

Speed: DC motor, setting 20 ~ 60CPM is available.

Counter: 7 sets

When a single wire break, the counter which belongs to the breaking wire will stop counting. Shut down is controlled by master counter or automatically stop when six sets specimens break.

Weights: 100、200、300、500g each per 6 pcs

Attach with weights shelf for put convenience.

Dimension: 78×65×95 cm

Weight: 100 kg

Others:

1.With 6 Sets of terminal-plug and Alligator-clip for easy to connect.

2.The length of specimen could be adjustable, and machine is equipped with limitation block to prevent specimen crash each other.

3.The R angle of grip at two ends: 10mm and 5mm, changeable.

4.The grip span can be custom-made according to wire head size.

5.Single counter Built-in battery can be used for about 5 years
