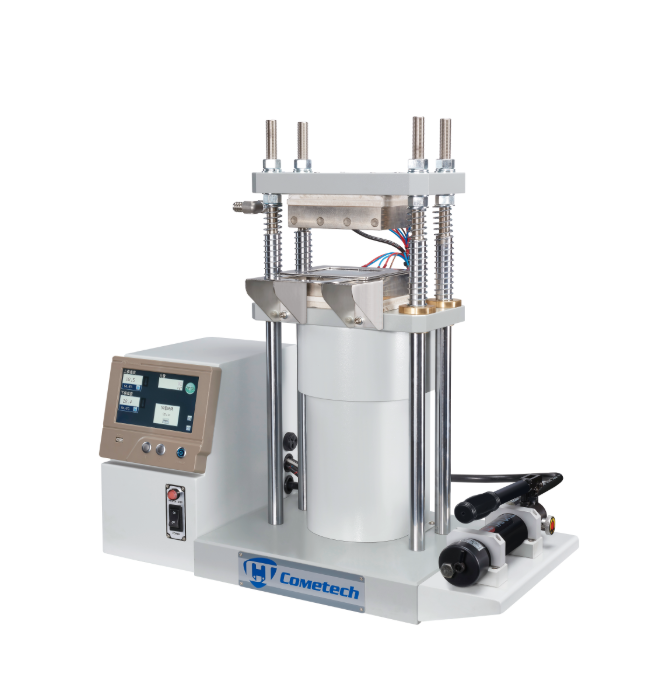

Cometech QC-677T 电脑伺服拉(压)力试验机

Pressure(Tons): 5, 10 (Tons),

Units:

Temperature: ℃, ℉

Area: m2, cm2, mm2, ft2, in2

Force: kgf, gf, tonf(long), tonf(short), lbf, ozf, kN, N, tonf(SI)

Pressure: bar, kgf/cm2, KPa, MPa, mm-Aq(4℃), psi

Temperature: Room temperature up to 300℃

Temperature range:

50℃ to 150℃ about 18 minutes

150℃ to 60℃ about 10 minutes (cooling)

Cooling method: Water cooling system (optional)

Dimension of a heating plate: 15×15 cm

Distance between heating plates: 60 to 100 mm (adjustable)

Accessories: 1 piece of 100 mm x 100 mm x 2 mm forming mold

Control: 7”touch panel

Display: Real-time force, temperature

Power: Single phase, 220V/50Hz or 60Hz

Dimension: 69 × 35 × 75 cm (W×D×H)

Weight: Around 110 kg
