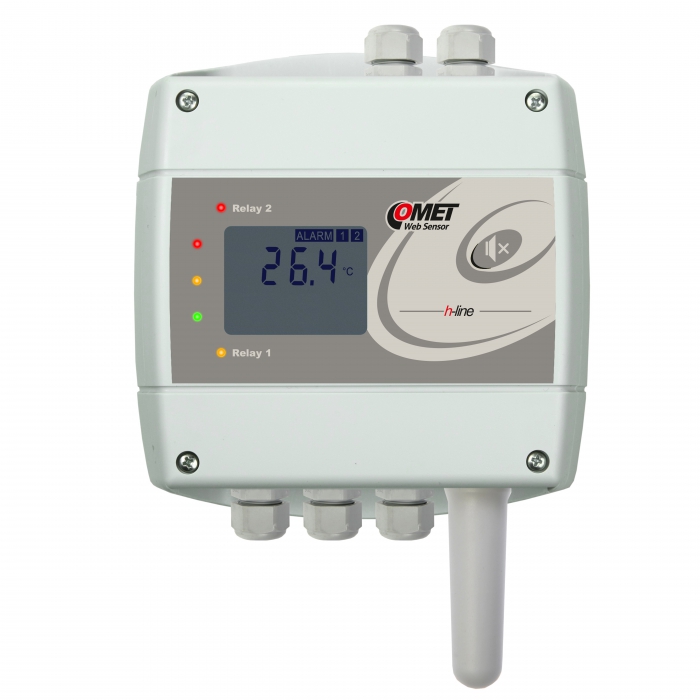

Comet H0530 温度计 (9-30 Vdc, Ethernet)

Measured value: Temperature, Two-state signal

Temperature sensor:

   Measuring range: -30 to +80 °C

   Accuracy: ±0.4 °C

   Resolution: 0.1 °C

Relay outputs:

   Quantity: 2

   Maximal voltage: 50 V

   Maximal current: 2 A

   Maximal power: 60 VA

Binary outputs:

   Quantity: 3

   Signal for binary input: dry contact, open collector or two-state voltage signal. Inputs are not galvanically isolated.

   Minimum pulse duration on binary input: 500 ms

   Voltage across open contact: < 3.3 V

   Low voltage level: 0 to +0.5 V

   High voltage level: +3.0 to +30 V

Operating temperature: -30 to +80 °C

Channels: internal temperature sensor

Acoustic alarm: from built-in beeper - switchable

Output: Ethernet

Measuring interval: 2 s

Available temperature units: degrees Celsius, degrees Fahrenheit

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail (SMTP authentication is supported), SNMP Trap, Syslog

Power: 9-30 Vdc

Protection class: IP40

Dimensions: 136 x 191 x 45 mm; stem length: 53 mm

Weight: approx. 340 g

Included in delivery:

   H0530

   Instruction Manual

   Traceable Calibration Certificate

   FREE software TSensor for Configuring of the Transmitter

   COMET Cloud for 3 Months
