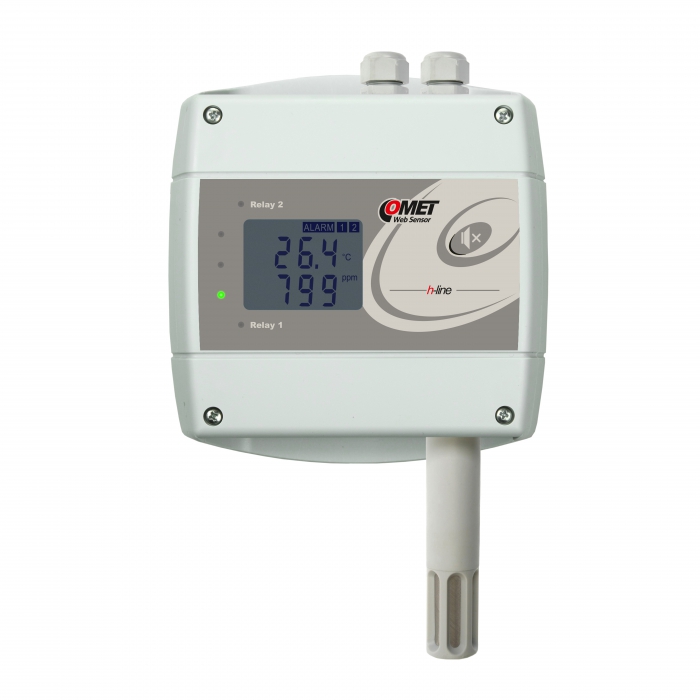

Comet H6520 远程CO2浓度温度计湿度计 (9-30 Vdc, Ethernet)
制造商: Comet Model: H6520 P/N: H6520 - 联系
Measured value: Temperature, Relative humidity, Counted values (dew point…), CO2
Temperature sensor:
Measuring range: -30 to +80 °C
Accuracy: ±0.4 °C
Resolution: 0.1 °C
Humidity sensor:
Measuring range: 0 to 100 % RH
Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
Resolution: 0.1% RH
Dew point:
Measuring range: -60 to +80 °C
Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution: 0.1 °C
CO2 sensor:
Measuring range: 0 to 2000 ppm
Accuracy: ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution: 1 ppm
Relay outputs:
Quantity: 2
Maximal voltage: 50 V
Maximal current: 2 A
Maximal power: 60 VA
Operating temperature: -30 to +60 °C
Channels: internal temperature, humidity and CO2 sensor
Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm: from built-in beeper - switchable
Output: Ethernet
Measuring interval: 2 s; CO2: 15 s
Available temperature units: degrees Celsius, degrees Fahrenheit
Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols: E-mail (SMTP authentication is supported), SNMP Trap, Syslog
Power: 9-30 Vdc
Protection class: IP30
Dimensions: 136 x 213 x 45 mm; stem length: 75mm
Weight: approx. 340 g
Included in delivery:
H6520
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter
COMET Cloud for 3 Months
