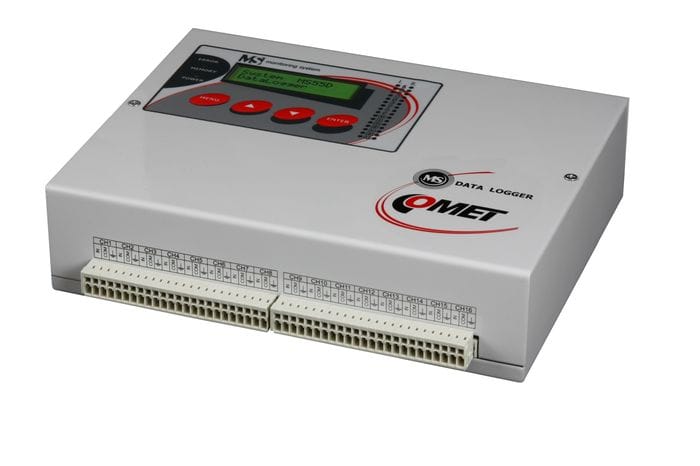

Comet MS55D 带报警的16通道数据记录器 (9 to 30Vdc)
制造商: Comet Model: MS55D P/N: MS55D - 联系
Measured value: Temperature, Relative humidity, Counted values (dew point…), Current, Voltage, Two-state signal, Frequency, Resistance, Event logging
Operating temperature: 0 to +50 °C
Channels: 1 to 16 hardware modules
Memory: 2MB (up to 480 000 values)
Memory type: internal SRAM, backed-up by Lithium battery
Recording interval: adjustable individually for all input channels from 1 second to 24 hours
Recording interval: noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock: year, leap year, month, day, hour, minute, second, backed-up by Lithium battery
Resolution of the AD converter (analog channels): 16 bits, conversion duration approximately 60ms/channel
Communication speed: 9600, 19200, 57600, 115200 Bd, 230400* Bd (* pro USB, Ethernet)
Communication protocol: www, XML, SNMP, SOAP, ModbusTCP
Alarm protocols: email, SNMP trap, Syslog
Power: 9 to 30Vdc, 24Vdc recommended
Protection class: IP20
Dimensions (including connectors): 215 x 225 x 60 mm
Weight: approx. 800 g
Included in delivery:
MS55D
Instruction Manual
Traceable Calibration Certificate
USB Cable
COMET Cloud for 3 Months (if the optional Ethernet communication is connected)
Ethernet interface
The complete solution for monitoring of temperature, humidity, pressure, CO2, voltage, current, pulses, events and other signals. Configurable inputs and outputs.
Data loggers are designed for measuring, recording, evaluation and subsequent processing of input electrical signals, which are subject to relatively slow changes (> 1s). In conjunction with the appropriate sensors and transducers are suitable for monitoring physical quantities.
Datasheet
Manual
