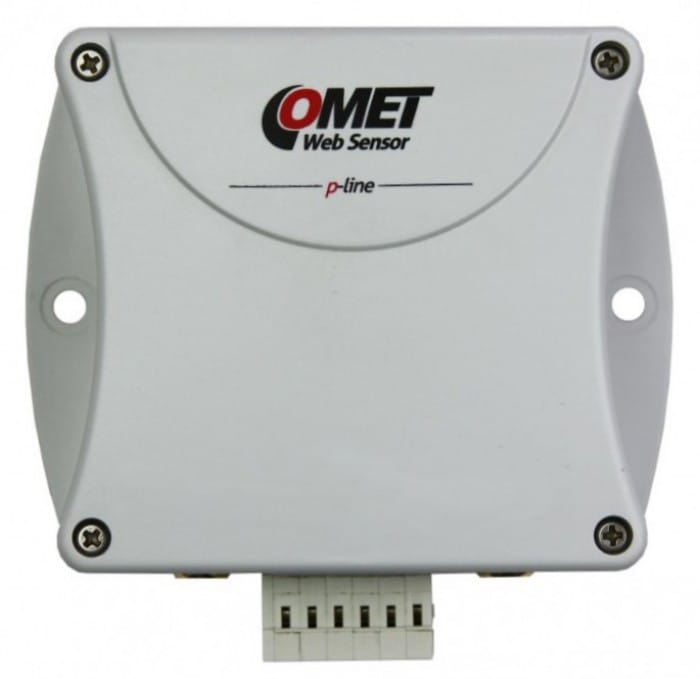

Comet P8552 Web传感器-双通道 (5 Vdc, Ethernet)

Measured value: Temperature, Relative humidity, Two-state signal

Temperature sensor:

  Measuring range: -55 to +105 °C

  Accuracy: according to the connected probe DSxx

  Resolution: 0.1 °C

Humidity sensor:

  Measuring range: according to the connected probe DSxx

  Accuracy: according to the connected probe DSxx

  Resolution: 0.1% RH

Binary input:

  Parameters of the voltage contact: Voltage input level for „L“:< 1,0 V;

                                                         Voltage input level for „H“:> 2,5 V;

                                                         Internal resistivity of the voltage source: < 2kOhm

                                                         Input voltage range: 0 to +30 V

  Parameters of the voltage-free contact: Voltage on the unclosed contact: 3.3 V

                                                                 Current through closed contact: 0.1 mA

                                                                 Maximum resistivity of the contact: < 5kOhm

Operating temperature: -30 to +80 °C

Channels: 1x external temperature probe nebo 1x connectable temperature+humidity probe

Output: Ethernet

Measuring interval: 2 s

Available temperature units: degrees Celsius, degrees Fahrenheit

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Power: 5 Vdc

Protection class: IP30

Dimensions: 88 x 74 x 39,5 mm

Weight: approx. 125 g

Included in delivery:

  P8552

  Instruction Manual

  Traceable Calibration Certificate

  FREE software TSensor for Configuring of the Transmitter

  COMET Cloud for 3 Months

  EXTERNAL PROBES ARE NOT INCLUDED IN DELIVERY

  POWER SUPPLY IS NOT INCLUDED IN DELIVERY
