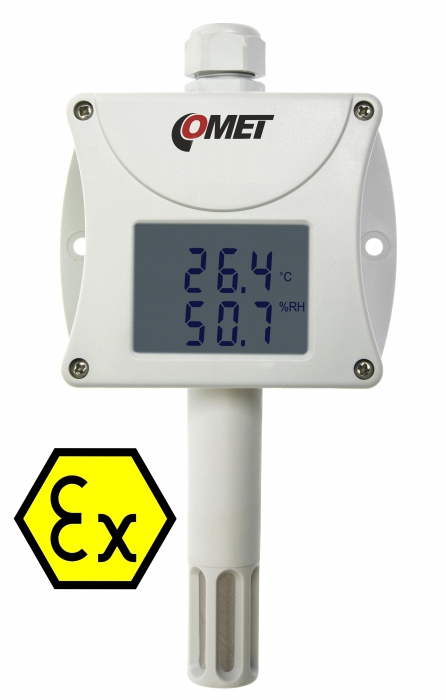

Comet T3110Ex Humidity and Temperature Transmitter
制造商: Comet Model: T3110Ex - 联系
MEASURED VALUE: Temperature, Relative humidity, Counted values (dew point…)
TEMPERATURE SENSOR:
Measuring range: -30 to +80 °C
Accuracy: ±0.4 °C
Resolution: 0.1 °C
HUMIDITY SENSOR:
Measuring range: 0 to 100 % RH
Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
Resolution: 0.1% RH
DEW POINT:
Measuring range: -60 to +80 °C
Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution: 0.1 °C
Operating temperature: -30 to +60 °C
Channels: internal temperature and humidity sensor
Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output: 4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation: all temperature range
Configuration of output: user adjustable from PC; measured range + value
Power: 9-30 Vdc
Protection class: IP65 electronics; IP40 sensors
Dimensions: 88.5 x 170 x 39.5 mm; stem length: 75 mm
Weight: approx. 150 g
Included in delivery:
T3110Ex
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter
