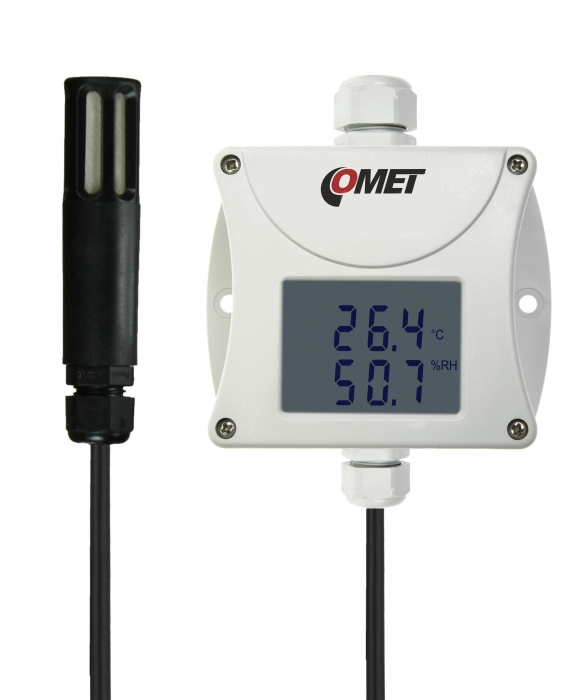

Comet T3111 RH+T+Tdp电缆探头 (-30~105°C, 0~100%RH)

Measured value: Temperature, Relative humidity, Counted values (dew point…)

Temperature sensor:

  Measuring range: -30 to +105 °C

  Accuracy: ±0.4 °C

  Resolution: 0.1 °C

Humidity sensor:

  Measuring range: 0 to 100 % RH

  Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C

  Resolution: 0.1% RH

Dew point:

  Measuring range: -60 to +80 °C

  Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %

  Resolution: 0.1 °C

Operating temperature: -30 to +80 °C

Channels: 1x connectable temperature+humidity probe

Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output: 4-20 mA, galvanic isolated

Range of humidity sensor temperature compensation: all temperature range

Configuration of output: user adjustable from PC; measured range + value

Power: 9-30 Vdc

Protection class: IP65 electronics; IP40 sensors

Dimensions: 88.5 x 145 x 39.5 mm; length/diameter of external probe: 88/18 mm

External probe cable length: 1 meter

Weight: approx. 210 g

Included in delivery:

  T3111

  Instruction Manual

  Traceable Calibration Certificate

  FREE software TSensor for Configuring of the Transmitter

Details

Datasheet


Manual
