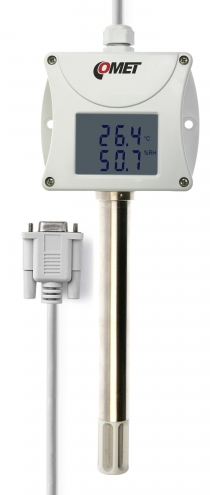

Comet T3313 Temperature and humidity probe (9-30Vdc, RS232)

Measured value: Temperature, Relative humidity, Counted values (dew point…)

Temperature sensor:

   Measuring range: -30 to +125 °C

   Accuracy: ±0.4 °C

   Resolution: 0.1 °C

Humidity sensor:

   Measuring range: 0 to 100 % RH

   Accurac: ±2.5 % RH from 5 to 95 % at 23 °C

   Resolution: 0.1% RH

Dew point:

   Measuring range: -60 to +80 °C

   Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %

   Resolution: 0.1 °C

Operating temperature: -30 to +80 °C

Channels:  internal temperature and humidity sensor

Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output: RS232

Range of humidity sensor temperature compensation: all temperature range

Configuration of output: user adjustable from PC; measured range + value

Communication protocol: ModBus RTU and Advantech ADAM compatible protocol

Power: 9-30 Vdc

Protection class: IP65 electronics; IP40 sensors

Dimensions: 88.5 x 250 x 39.5 mm; stem length: 150 mm

Weight: approx. 150 g

Included in delivery:

   T3313

   Instruction Manual

   Traceable Calibration Certificate

   FREE software TSensor for Configuring of the Transmitter

Details

Datasheet


Manual
