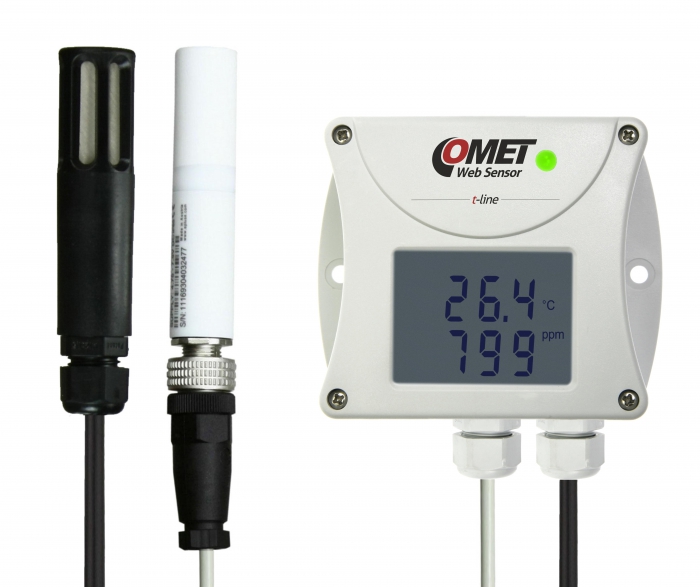

Comet T6541 Web传感器-远程CO2浓度温度计湿度计 (9-30 Vdc, Ethernet)

Measured value: Temperature, Relative humidity, Counted values (dew point…), CO2

Temperature sensor:

  Measuring range: -30 to +105 °C

  Accuracy: ±0.4 °C

  Resolution: 0.1 °C

Humidity sensor:

  Measuring range: 5 to 100% RH

  Accuracy: ±2.5% relative humidity from 5 to 95% at 23°C

  Resolution: 0.1% RH

Dew point:

  Measuring range: -60 to +80 °C

  Accuracy: ±1.6°C at ambient temperature T<25°C and RH>30%

  Resolution: 0.1 °C

CO2 sensor:

  Measuring range: 0 to 10 000 ppm

  Accuracy: ±(100ppm +5% from reading) at 25°C and 1013hPa

  Resolution: 1 ppm

Operating temperature: -30 to +80 °C

Channels: 1x connectable temperature+humidity probe, 1x external CO2 sensor

Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output: Ethernet

Measuring interval: 2 s; CO2: 15 s

Range of humidity sensor temperature compensation: all temperature range

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Power: 9-30 Vdc

Protection class: IP30 electronics; IP40 temperature+humidity sensor; IP65 CO2 sensor

Dimensions: 88.5 x 147 x 39.5 mm

External probe T+RH cable length: 1 meter (optionally 2 or 4 meters)

External probe cable length CO2: 1 meter (optionally 2 or 4 meters)

Weight: approx. 150 g

Included in delivery:

  T6541

  Instruction Manual

  Traceable Calibration Certificate

  FREE software TSensor for Configuring of the Transmitter

  COMET Cloud for 3 Months
