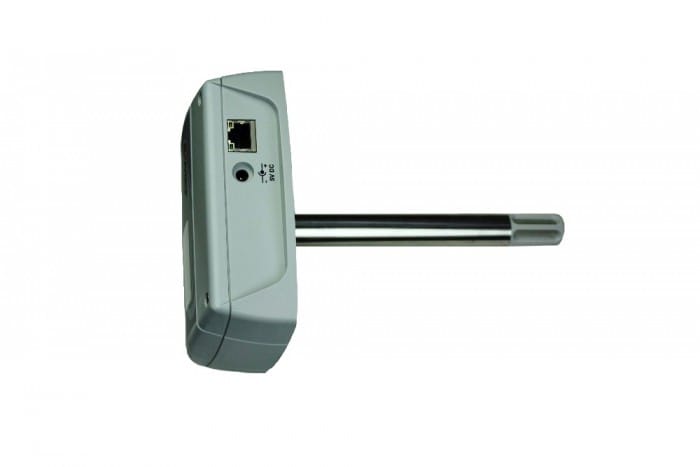

Comet T7613D 带PoE的网络传感器，管道安装-远程温度计-湿度计-气压计 (PoE/ 5Vdc, Ethernet)

Measured value: Temperature, Relative humidity, Counted values (dew point…), Atmospheric pressure

Temperature sensor:

  Measuring range: -30 to +105 °C

  Accuracy: ±0.6 °C

  Resolution: 0.1 °C

Humidity sensor:

  Measuring range: 0 to 100 % RH

  Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C

  Resolution: 0.1% RH

Dew point:

  Measuring range: -60 to +80 °C

  Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %

  Resolution: 0.1 °C

Atmospheric pressure sensor:

  Measuring range: 600 to 1100 hPa

  Accuracy: ±1.3 hPa at 23 °C from 800 to 1100 hPa

  Resolution: 0.1 hPa

Operating temperature: -20 to +60 °C

Channels: internal sensor of temperature, humidity sensor and atmospheric pressure

Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output: Ethernet

Range of humidity sensor temperature compensation: all temperature range

Measuring interval: 2 s

Available temperature units: degrees Celsius, degrees Fahrenheit

Available pressure units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Power: Power over Ethernet according to IEEE 802.3af or 5Vdc

Protection class: IP30

Dimensions: 136 x 201 x 45 mm; stem length 150 mm

Weight: approx. 320 g

Included in delivery:

  T7613D

  Instruction Manual

  Traceable Calibration Certificate

  FREE software TSensor for Configuring of the Transmitter

  COMET Cloud for 3 Months
