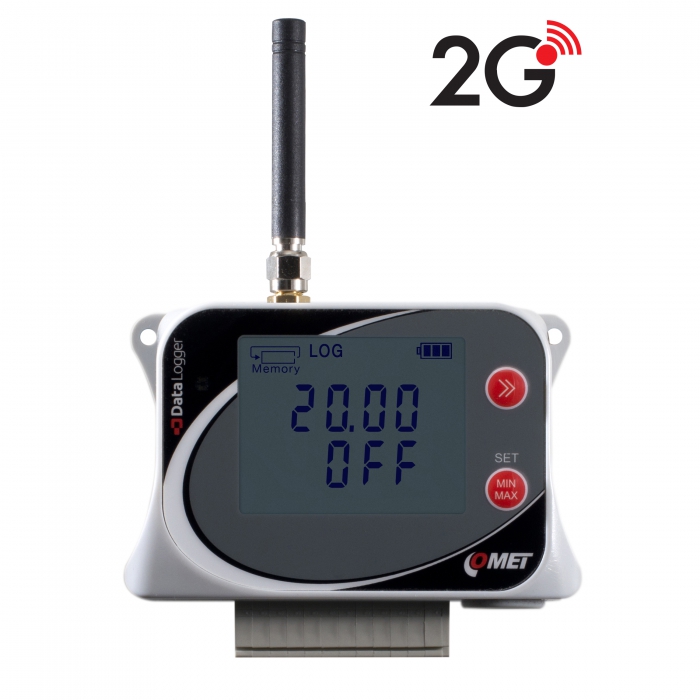

Comet U6841M 物联网无线数据记录器,适用于3个0-20mA电流输入和1个双状态输入,内置2G调制解调器 (Rechargeable Li-Ion battery A8200, 3.6V/5200mAh)
制造商: Comet Model: U6841M P/N: U6841M - 联系
Measured value: Voltage, Two-state signal
Voltage input:
Measuring range: 0 to 20 mA DC
Accuracy: better than 1 µA
Input resistance: approx. 100 Ω
Minimum current: 0 mA (open circuit)
Maximum current: limited to approx. 40 mA
Binary input:
Parameters of the voltage contact: "L" level input voltage: < 0.8 V(*);
"H" level input voltage: > 2 V;
Minimum voltage applicable: 0 V;
Maximum voltage applicable: +30 V DC
Parameters of the voltage-free contact: Contact resistance in "switched-on" state: < 10 kOhm;
Contact resistance in the "switched-off" state: > 2 MOhm;
Contact voltage in the "switched-off" state: ca 3 V;
Minimum state duration necessary for latching the state: 1s
GSM modem parameters:
Quad-band: 850/900/1800/1900MHz
Compliant to GSM: Phase2/2+
GPRS: GPRS mobile station class B
Class 4: 2W @ 850/900MHz
Class 1: 1W @ 1800/1900MHz
Operating temperature: -20 to +60 °C
Channels: 3x current input, 1x binary input
Memory: 500.000 values in noncyclic logging mode; 350.000 values in cyclic record mode
Recording interval to the internal memory: adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud: from 5 minutes
Interval for measuring and evaluating alarms: adjustable 1 s, 10 s, 1 min
Recording mode: noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock: year, leap year, month, day, hour, minute, second
Power: rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class: IP20
Dimensions: 61 x 93 x 53 mm, with antenna :120 x 93 x 53 mm
Weight (including batteries): approx. 270 g
Included in delivery:
U6841M
Instruction Manual
Traceable Calibration Certificate
Rechargeable Battery
Power Supply
USB-C Cable
FREE FULL VERSION Analytical Software COMET Vision
COMET Cloud for 3 Months
SIM CARD IS NOT INCLUDED IN DELIVERY
