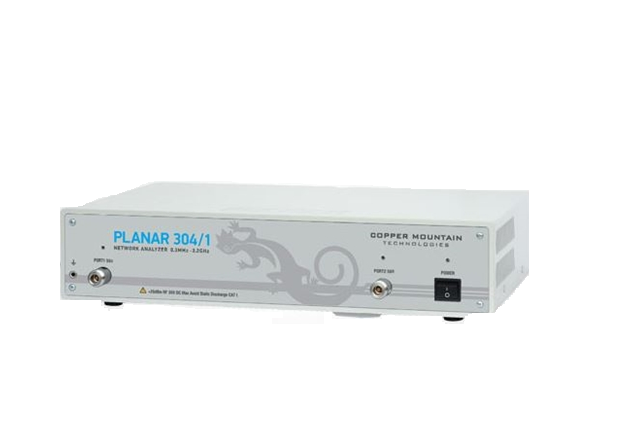

Copper Mountain Planar 304/1 矢量网络分析仪（0.1 MHz - 3.2 GHz，2端口2路径（S11，S21，S12，S22））

The Planar 304/1 VNA is a 3.2 GHz, 2-port instrument, capable of 135 dB dynamic range and designed for operation with any Windows PC or laptop. The free, lightweight VNA application connects to the 304 with a standard USB cable, creating a future-proof solution that significantly enhances ease of use compared with conventional instruments.

The 304 provides a wide variety of analysis capabilities, including time-domain with gating and frequency offset modes, at no additional cost. Collection of metrology-grade S-parameter test results can be achieved manually or through automation in Python, MATLAB, Excel, C++, VB.NET, or LabVIEW.

• Frequency range: 100 kHz to 3.2 GHz
• Measured parameters: S₁₁, S₂₁, S₁₂, S₂₂
• Sweep types: Linear frequency, log frequency, segment, power sweep
• Dynamic range: 135 dB (1 Hz)
• Measurement speed: 125 µs per point at 90 dB dynamic range
• Output power adjustment range: -55 dBm to +10 dBm
• Up to 200,001 measurement points per sweep

Applications of the Planar 304/1 include RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurement, antenna matching, quality control, material measurements, and many others. Curious to see what other users think of this device?

Data Sheets

• 304/1 Data Sheet

Manuals

• 304/1 Operating Manual
• 304/1 Programming Manual

Software

• 304/1 Installer
  (v3.50; Aug. 5, 2015)
• 304/1 Simulator/Demo
  (v3.50; Aug. 5, 2015)
• 304/1 Software Release Notes
