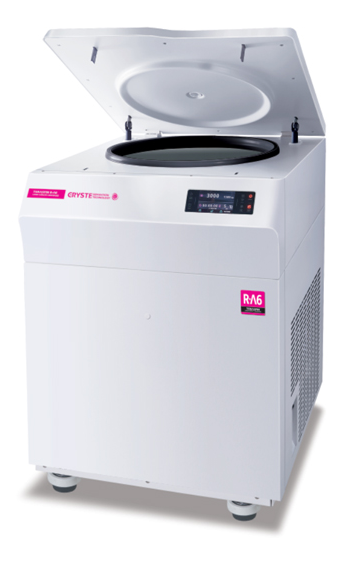

CRYSTE Teraspin R-A6 Multi-purpose centrifuge (400 ~ 12,000 rpm)

Max. RPM: 12,000RPM(Angle Rotor)

Max. RCF: 22,281 xg

Max. Capacity; 1,000ml x 6

Accel / Decel phase: 0 ~ 9 (10set)

Set Temp.: -10℃ ~ +40℃ ( 1℃ increments)

Refrigeration System: Non-CFC

Noise Level: ≤60dB

Set Time: 99h 59m 59sec or continuous

Time Count: At set speed or from starting

Program: 100 memory

Rotor ID: Auto

Display: 4.3” LCD Touch Screen

RPM Range: 400 to 12,000 rpm

Display message on screen: RPM, RCF, Time, Door open/close, Temp ACC, DEC, Rotor ID, Program, Comp. On/Off

Power Supply: 230V / 50-60Hz

Power Consumption: 5KW

Dimension(W x D x H): 666 x 772 x 890 mm

Weight (without rotor): 140Kg

Main Body

TERASPIN R-A6

TERASPIN R-A6, without rotor, 230V/50~60Hz  TRA6 -MB

Angle Rotor

A6250H 250ml x 6 fixed angle rotor (Max 12,000RPM)  VL - AR11

A6500H 500ml x 6 fixed angle rotor (Max 10,000RPM)  VL - AR12

A41000H 1000ml x 4 fixed angle rotor (Max 8,000RPM)  VL - AR13

A61000H 1000ml x 6 fixed angle rotor (Max 7,000RPM)  VL - AR14
