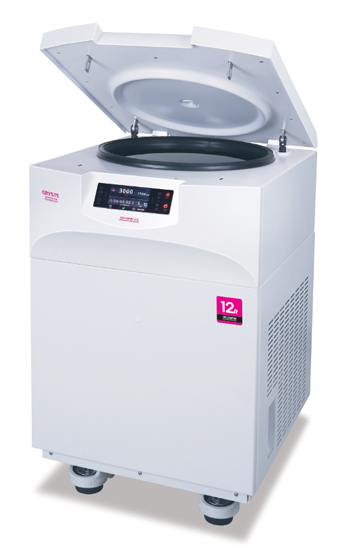

CRYSTE Velospin 12R Multi-purpose centrifuge (400~12000 rpm)

Max. RPM: 12,000RPM(Angle Rotor); 4,000RPM(Swing Rotor)

Max. RCF: 16,647 xg; 3,265 xg

Max. Capacity; 250ml x 6; 750ml x 4

Accel / Decel phase: 0 ~ 9 (10set)

Refrigeration System: Non-CFC

Noise Level: ≤60dB

Set Time: 99 min 59sec or continuous

Time Count: At set speed or from starting

Program: 100 memory

Rotor ID: Auto

Display: 4.3” LCD Touch Screen

RPM Range: 400 to 12,000 rpm

Display message on screen: RPM, RCF, Time, Door open/close, Temp ACC, DEC, Rotor ID, Program, Comp. On/Off

Power Supply: 230V / 50-60Hz

Power Consumption: 2,8 KW

Dimension(W x D x H): 564 x 673 x 866 mm

Weight (without rotor): 164kg

Main Body

VELOSPIN 12R

VELOSPIN 12R, without rotor, 230V/50~60Hz  VL12R -MB

Angle Rotor

A480.2H  0.2ml x 48 fixed angle rotor for PCR tubes (Max 12,000RPM)  VL - AR1

A301.5H   1.5/2.0ml x 30 fixed angle rotor (Max 12,000RPM)  VL - AR2

A481.5H   1.5/2.0ml x 48 fixed angle rotor (Max 12,000RPM)  VL - AR3

A1215H   15ml x 12 fixed angle rotor (Max 12,000RPM)  VL - AR4

A1215HC   15ml x 12 fixed angle rotor for conical tubes (Max 12,000RPM)  VL - AR5

A2415HC   15ml x 24 fixed angle rotor for conical tubes (Max 8,000RPM)  VL - AR6

A650H 50ml x 6 fixed angle rotor (Max 12,000RPM)  VL - AR7

A650HC 50ml x 6 fixed angle rotor for conical tubes (Max 10,000RPM)  VL - AR8

A850H 50ml x 8 fixed angle rotor (Max 12,000RPM)  VL - AR9

A685H 85ml x 6 fixed angle rotor (Max 10,000RPM)  VL - AR10

A6250H 250ml x 6 fixed angle rotor (Max 10,000RPM)  VL - AR11

Swing Rotor

S4250HE  250ml x 4-wing rotor for rectangular/micro plate bukets (Max 4,000RPM)  VL - SR1
