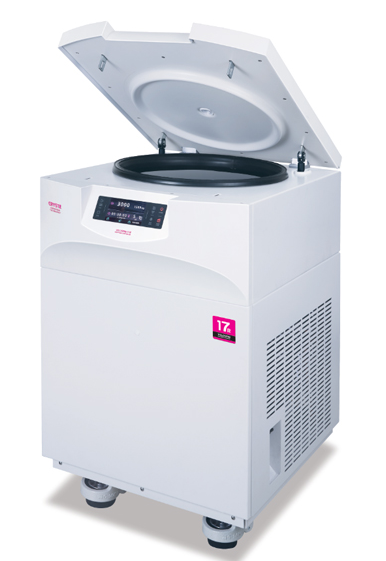

CRYSTE Velospin 17R Multi-purpose centrifuge (400~17000 rpm)

Max. RPM: 17,000RPM(Angle Rotor) 4,000RPM(Swing Rotor)

Max. RCF: 32,278 xg 3,265 xg

Max. Capacity; 500ml x 6 250ml x 4

Accel / Decel phase: 0 ~ 9 (10set)

Set Temp.: +-10℃ ~ +40℃ ( 1℃ increments )

Refrigeration System: Non-CFC

Noise Level: ≤60dB

Set Time: 99 min 59sec or continuous

Time Count: At set speed or from starting

Program: 100 memory

Rotor ID: Auto

Display: 4.3” LCD Touch Screen

RPM Range: 400 to 17,000 rpm

Display message on screen: RPM, RCF, Time, Door open/close, Temp ACC, DEC, Rotor ID, Program, Comp. On/Off

Power Supply: 230V / 50-60Hz

Power Consumption: 2,8 KW

Dimension(W x D x H): 564 x 673 x 866 mm

Weight (without rotor): 168kg

Main Body

VELOSPIN 17R

VELOSPIN 17R, without rotor, 230V/50~60Hz  VL17R -MB

Angle Rotor

A480.2H  0.2ml x 48 fixed angle rotor for PCR tubes (Max 12,000RPM)  VL - AR1

A301.5H   1.5/2.0ml x 30 fixed angle rotor (Max 17,000RPM)  VL - AR2

A481.5H   1.5/2.0ml x 48 fixed angle rotor (Max 13,000RPM)  VL - AR3

A1215H   15ml x 12 fixed angle rotor (Max 17,000RPM)  VL - AR4

A1215HC   15ml x 12 fixed angle rotor for conical tubes (Max 15,000RPM)  VL - AR5

A650H 50ml x 6 fixed angle rotor (Max 17,000RPM)  VL - AR7

A650HC 50ml x 6 fixed angle rotor for conical tubes (Max 15,000RPM)  VL - AR8

A850H 50ml x 8 fixed angle rotor (Max 15,000RPM)  VL - AR9

A685H 85ml x 6 fixed angle rotor (Max 15,000RPM)  VL - AR10

A6250H 250ml x 6 fixed angle rotor (Max 10,000RPM)  VL - AR11

A6250H 500ml x 6 fixed angle rotor (Max 8,000RPM)  VL - AR12

Swing Rotor

S4250HE  250ml x 4-wing rotor for rectangular/micro plate bukets (Max 4,000RPM)  VL - SR1
