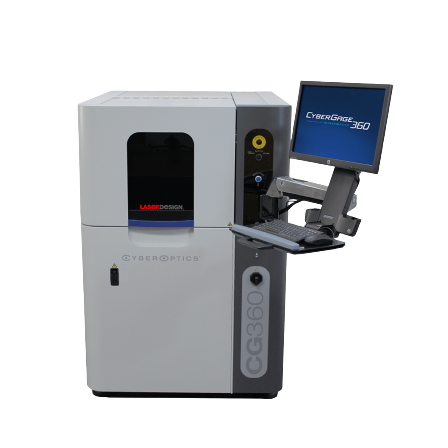

CyberOptics CyberGage360 3D Scanning System (25µm; 50µm)

Work volume: 200mm diameter x 100mm high cylinder (8” diameter x 4” high)

System accuracy: 25µm

Resolution: 50µm

Speed: 8 million points/part pose, with 8 part poses (every 45°) scanned in < 3 minutes

CDRH Safety: Eye safe - no protection needed

System controllers embedded: High-performance PC included

Environmental temperature: Temperature ambient = 20°C +/- 3°C (68.5°F +/- 5°F) to maintain calibrated performance

Operating environment humidity: 50% +/- 30%

Weight of part: 2.0 kg max (4.4 lbs.)

Data output formats: STL, PLY, OBJ, ASC

Electrical requirements: 110-120V+/-10% 1 phase/ 50-60hz+/-3.5%
