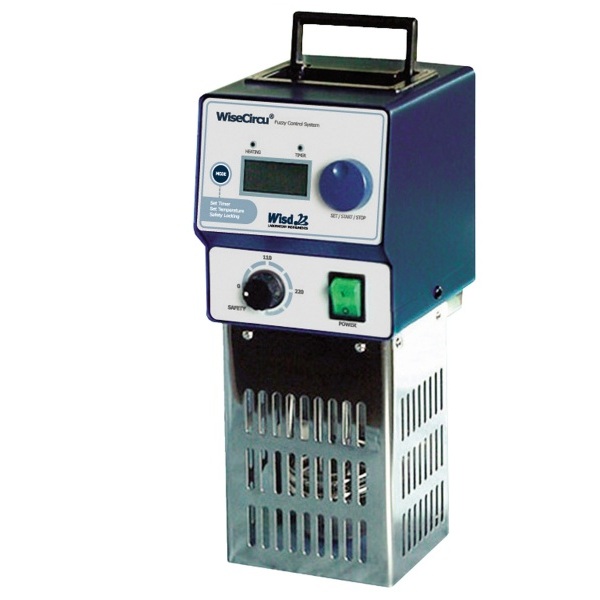

DaiHan WCB-22H 数字式精密循环浸入式泵头 (+5°C~+100°C,22L)

Temp.Range: Room Temp. +5°C~ +100°C

Sensor: PT100

Heating Power:  2 kW

Pump: 5 Lit/Min

Timer & Alarm: 99hr 59min (Delay & Continuous run), Error status & Timer-end

Display: Back-Light Digital LCD

Controller: Digital Fuzzy Controller

Safety Circuit: Over-Temp./-Curent protector, Sensor Error & Low Level Detection

Dimension(wxdxh): 130 x 165 x h320 mm

Packing size (mm):  400 x 280 x h200 mm

Gross Weight (kg): 10 kg

Electrical Reqts.: 1 Phase, AC 230V, 50/60Hz

Datasheet
