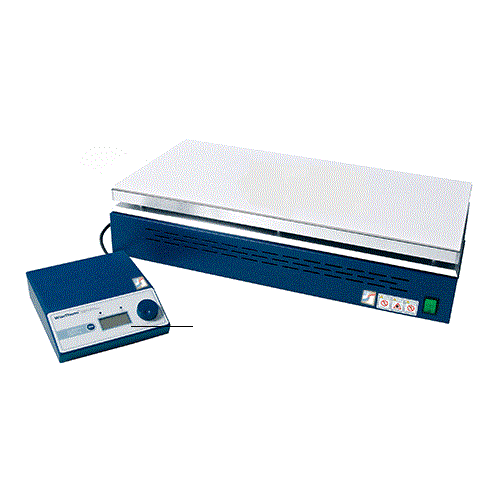

DaiHan HPLP-C-R 数显加热板 (350℃)

Controller: Digital Remote Controller

Plate Surface: Ceramic-coated

Plate Size: 310 x 620mm

Temp.Range & Accuracy: Max.350°C, ±0.3°C at Set Temperature

Temp.Resolution: 0.1°C-Display, 0.5°C-Control

Temp.Uniformity: Specially Designed Heating Module: Temp.Difference 10% less

Heating Power/Consumption: 2kW

Timer & Alarm: 99hr 59min (with Continuous run.), Error status & Timer-end

Display: Digital LCD with Back-Light Function

Permissible Temp. & RH%: Ambient +5~50°C, 85% RH

Dimension & Weight: 670 x 360 x h150mm, 16kg

Electrical Reqts.: 1 Phase, AC 230 V, 50/60 Hz
