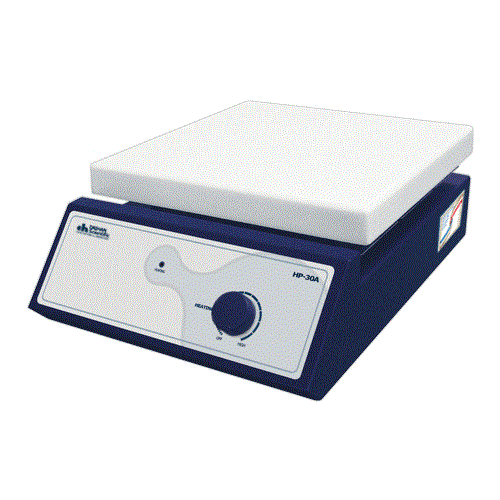

DaiHan HP-30A 加热板 (380℃)

  • 制造商: DaiHan
    Model: HP-30A
    P/N: DH.WHP03121
    来源: Korea
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Plate size(mm): 260 x 260

Material:

+ Body: Powder Coated Aluminum

+ Plate: Ceramic Coated Aluminum (Chemical/ Acid Resistance, Easy to Clean)

Temp.Range & Uniformity: Max. 380°C Temp., High Uniformity: Difference 10% less

Heating Power/Consumption: 1.2 kW

Permissible Temp. & RH%: R/T +5~50°C, 85% RH

Dimension & Weight: 286 x 387 x h99mm, 3.3kg

Electrical Reqts: 1 Phase, AC 230 V, 50/60 Hz

Optional External Temp Probe • Stand Rod • Holder • Clamp • Clip:

DH.WHP503060 (1) Temp. Probe, "SS500","PT100", Φ4 x L250mm

DH.WHP503061 (2) Teflon Coated Temp. Probe, "SS510", Φ4 x L250mm

DH.WHP503011 Stand Rod, "RD100", Φ12.7 x L390 for "HP-30A / 30D"

DH.WHP503036 Stand Rod, "RD200", Φ12 x L450 for "HP-20A / 20D"

DH.WHP503012 Holder / Clamp / Clip, "CL220", for Temp. Probe
