DaiHan HS-50A-磁性搅拌器 (3,000rpm; 10 L)

Stirring Capacity (H20):  Max. 10 Lit

Maximum Viscosity/Torque: 5,000 mPas/85 Ncm

Speed Range & Motor: 200~3,000rpm, Direct Driven DC-motor

Motor Rating(Input/Output): 83/75W

Controller: Analog phase Controller

Safety Device: Over Heat Protector for Motor

Chuck Grip Capa. Φmm: dia Φ 3~10mm Shafts

"Push-Through" Shafts: dia Φ8mm or Less

Permissible Temp. & Humidity: 0~40°C, 80%

Material: ABS & Aluminum

Dimension (w x d x h): 90 x 145 x 180 mm

Weight: 4.5 kg

Packing Size & Gross Weight: 320 x 300 x180, 5kg

Power Consumption: 85W

Electrical Reqts: 1 Phase, AC 230 V, 50/60Hz

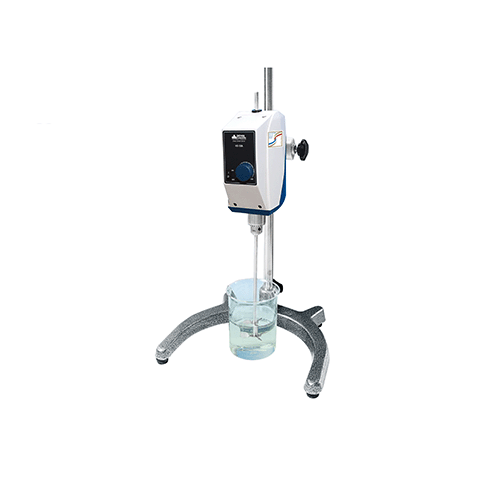

"HS-50A" Set : Complete with :("HS-50A Stirrer Unit, "S721" Stainless-steel Impeller(Rod Φ8 xL500mm, 3-Blade Φ50mm),  "CL200" Clamp, and "KA1177" Safety Stand(Rod Φ23 x L800mm, Base w34 x d29cm)

Datasheet
