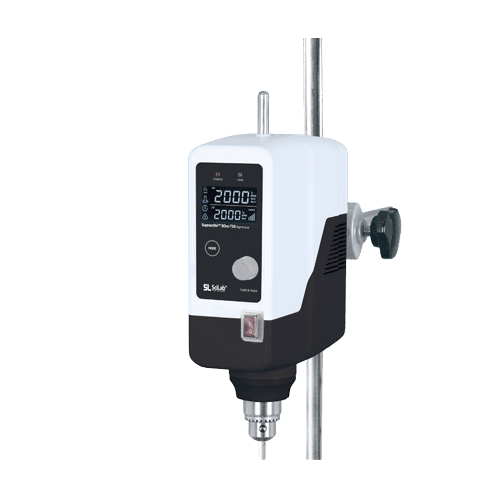

DaiHan SOvs-T16 超高扭力架空搅拌机 (160,000 mPas; 100L)

Stirring Capacity (H20):  Max. 100 Lit

Speed Range & Motor: 50~2000 rpm, Hi-Capacity Brushless DC Motor, Gear(Max 25:1 Ratio)

Maximum Viscosity/Torque: 160,000 mPas/600 Ncm

Motor Rating(Input/Output):  250/200 W

Controller: Digital PID Control

Safety Device: Over Heat & Current Protector for Motor

Chuck Grip Capa. Φmm: dia Φ 6~10mm Shafts, Flex-Coupling(Φ6~16mm)

"Push-Through" Shafts: dia Φ 10mm or Less

Permissible Temp. & Humidity: 0~40°C, 80%

Dimension (w x d x h):  84 x 205 x 275 mm

Weight: 3.5 kg

Material: Aluminum Die Casting

Power Consumption: 300W

Electrical Reqts: 1 Phase, AC 230 V, 50/60Hz
