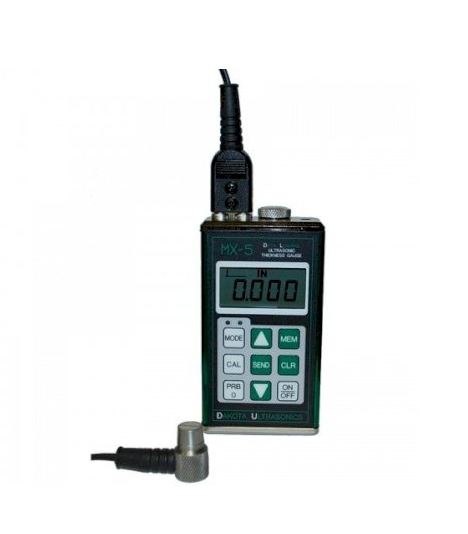

Dakota MX-5 DL 超声波测厚仪（数据记录仪，0.63-500mm）

 Measuring Range: 0.63 – 500mm

Stainless steel

MeasuringResolution : 0.001 inch (0.01 millimeter)

Units : Inches/Millimeters/Microseconds/metters-second

1 to 10 MHz frequency range.

Velocity Range: .0492 to .3937 in/m s. 1250 to 10,000 meters/sec

Velocity Settings: The MX-1 has 1 custom velocity setting programmed via a PC.

RS232 conect to PC and PC Software

Size: 2.5 W x 4.75 H x 1.25 D inches

63.5 W x 120.7 H x 31.8 D mm

Weight: 10 ounces

Operating Temperature: -20 to 120F (-20 to 50C

Two 1.5V alkaline or 1.2V NiCad AA cells.

Typically operates for 200 hours on alkaline and 130 hours on NiCad.

Logger 1000 data
