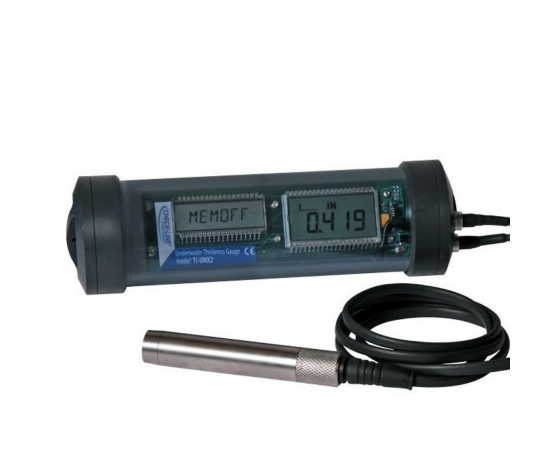

Dakota UMX-2 超声波测厚仪(4种测试模式,IP68)

MeasuringResolution : 0.001 inch (0.01 millimeter)
Units : Inches/Millimeters/Microseconds/metters-second
1 to 10 MHz frequency range.

Velocity Range: .0492 to .3937 in/m s. 1250 to 13,995 meters/sec
Range:Pulse-Echo Mode (P-E): (Pit&Flaw Detection) measures from 0.025 19.999 inches (0.63 to 500 millimeters).
Pulse-Echo Coating Mode (PECT): (Material, Coating, Pit & Flaw Detection): Material: 0.025 to 19.999 inches (0.63 to 500 millimeters). Coating: 0.001 to 0.100 inches (0.01 to 2.54 millimeters).
Echo-Echo Mode (E-E): Thru Paint & Coatings) measures from 0.100 to 4.0 inches (2.54 to 102 millimeters). Range will vary +/- depending on the coating.
Triple-Echo Mode (TCG): Thru Paint&Coatings) measures from 0.040 to 6.0 inches (1 to 150 millimeters) in steel. Range will vary based on coating thickness, material type, and probe
RS232 conect to PC and PC Software
Weight: 1.5 lbs (0.680kg) – with 3 AA batteries.
Size: Length (9.0 in/229 mm)
Diameter (2.375 in/60.33 mm)
IP68
Operating Temperature: -20 to 120F (-29 to 60C
Two 1.5V alkaline or 1.2V NiCad AA cells.
Typically operates for 50 hours on alkaline and 25 hours on NiCad.
Logger 5000 data
