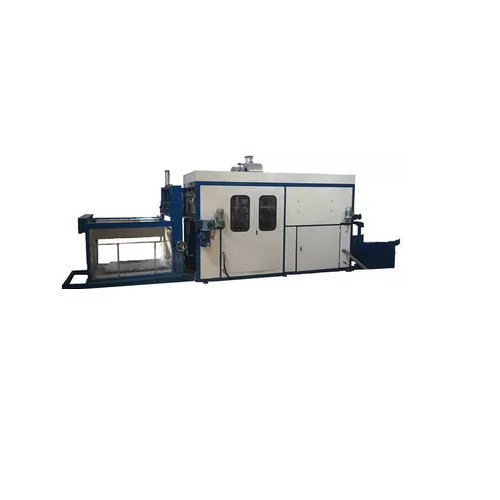

Danrel DR-71H-L Large Scale Automatic Plastic Vacuum Forming Machine
制造商: Danrel Model: DR-71H-L 来源: China 保障: 12 Month - 报价要求
- 报价要求
- 联系
Power Consumption: around 24 KW
Power supply: AC 380 V 3P (customized)
Forming Width: 450-710 mm (adjustable)
Forming Length: 560-1220 mm (adjustable)
Base Stroke: 350 mm
Sutiable Material Thickness: 0.2-2 mm
Sutiable Material: PVC, PET, PP, PS, PC, etc
Working efficiecy: 300-480 times per hour
Vacuum Pump Capacity: 100 L/Hour
Operation: PLC/Touch Screen
Temperature Control: PID control
Cooling: Cooling Water+Wind (Blower power: 0.75 KW*2)
Dimension:
+ Forming Part-L3520*W1300*H2600 mm
+ Material Loading Part-L1300*W1100*H1000 mm
+ Material Receiving Part-L2000*W1300*H1900 mm
Gross weight: 3000 kg
