主页 涂层测厚仪 DeFelsko PosiTector 6000 FNGS1 涂层测厚仪（0 - 63.5 mm，黑色金属和有色金属）

DeFelsko PosiTector 6000 FNGS1 涂层测厚仪（0 - 63.5 mm，黑色金属和有色金属）

- Probe: Ferrous and Non- Ferrous

+ Non-Conductive coatings on Non-Ferrous Metals Aluminum, Copper etc.

+ Non-Magnetic coat-ings on FerrousMetals (Steel & Iron)

- Range: 0 – 63.5 mm

- Accuracy: + (0.2 mm + 3%)

- Monochrome display with transflective technology enhances sunlight readability

- Storage of 250 readings—stored readings can be viewed or downloaded

- FAST mode - faster measurement speed for quick inspection

- Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits

- Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

- SIZE: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1")

- WEIGHT: 140 g (4.9 oz.) without batteries

complete with Standard(1) gage body, F probe, precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, download software PosiTector.net

Detail

Literature

Manual

Quick guide

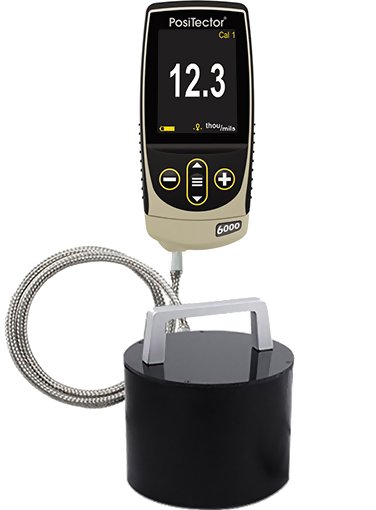

The PosiTector 6000 FNGS1 includes a Standard(1) body and a removable FNGS probe for measuring thick non-conductive coatings on ferrous and non-ferrous metal substrates. Ideal for measuring ship hull coatings and thick intumescent paints.

PosiTector 6000 FNGS1


Braided stainless steel cable and long lasting, low
wear probe face to facilitate scanning of large surfaces


 Feature Comparison Chart

 Standard(1) Advanced(3)

 Order Code (includes Standard(1) body and FNGS Probe)

 FNGS1 FNGS3

Included Body

Included Probe

 FNGS FNGS
 General Features Standard Advanced

All features shown on Overview page

Accepts all PosiTector 6000 & 200 (coating thickness), SPG (surface profile), DPM (environmental) and UTG (ultrasonic wall thickness) probes

Hi Contrast LCD display

 Monochrome Color

FAST mode - faster measurement speed for quick inspection

SCAN mode - take continuous readings without lifting the probe



Hi-Lo alarm - audibly and visibly alerts when measurements exceed your specified limits

Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Onscreen help, real time graphing, picture prompting and batch notes



Two (2) Year Warranty on Body and Probe
 Memory Features & Capacity Standard Advanced

Reading Storage Capacity

 250 in one group 100,000 in up to
1000 groups

Screen Capture - record screen images for record keeping and review

Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard.



SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels



PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings



Multiple stored cal adjustments for measuring on a variety of substrate conditions


 Connection Options Standard Advanced

USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
Wireless Technology for data transfer to a PC or optional portable printer

WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality


 PosiSoft Solutions - 4 ways to view and report your data Standard Advanced

PosiSoft 3.0 Desktop Software
Desktop software for PC or Mac computer

PosiSoft USB Drive
Access your PosiTector as a flash drive.
View and print readings and graphs using universal PC/Mac web browsers or file explorers

PosiSoft.net (formerly PosiTector.net)
Cloud-based application offering centralized management of PosiTector readings

PosiSoft Mobile
Gage-based software application featured in all PosiTector Advanced instruments


FNGS Probe (included)





Probe Weight: 1.8 lbs / 0.8 kg		 Range:

0 - 63.5 mm

0 - 2.5 inches
Accuracy*: + (0.01 in. + 3%)
+ (0.2 mm + 3%)
Minimum Surface
Area:		 10 x 10 in. (254 x 254 mm)
Minimum Substrate
Thickness:		 0.2 in. (5 mm)
*Accuracies are stated as a fixed value plus a percentage of the gage actual reading.



Comes complete with Standard(1) gage body, FNGS probe, Certified Polystyrene Blocks (P8), protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.

SIZE: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1")

BODY WEIGHT: 140 g (4.9 oz.) without batteries

CONFORMS TO: ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others

Unboxing the PosiTector 6000

Literature

Instruction Manual
