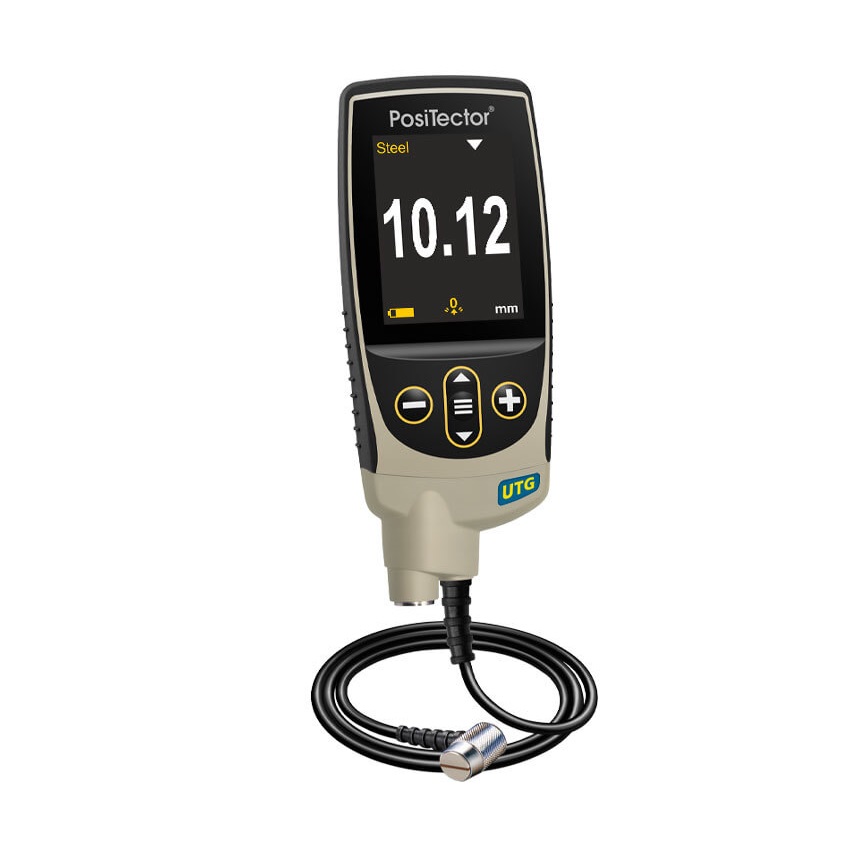

DeFelsko PosiTector UTG C3 超声波测厚仪(1.00-125.00 mm)

Application: Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side

- Probe Style: 5 MHz Dual Element

- Mode: Single Echo

- Measurement Range: 1.00 to 125.00 mm (0.040" to 5.000")

- Thru-Paint Capability: no

- Measurement Rate – Normal: 6 readings/sec

- Measurement Rate – Normal: 20 readings/sec

- Resolution: 0.01 mm (0.001")

- Accuracy: ±0.03 mm (±0.001")

- Hi contrast reversible color LCD

- Storage of 100,000 readings in up to 1,000 batches and sub-batches

- Store thickness, profile and environmental measurements  in individual batches

- Onscreen help, real time graphing, picture prompting, and more...

- Onscreen batch annotation—add notes and change batch names with the built-in keyboard

- WiFi technology wirelessly synchronizes with PosiTector.net, downloads software updates, and connects to mobile devices for expanded functionality

- Data transfer via USB to a PC or via      Wireless Technology

- A-Scan with adjustable Gain and screen capture

- B-Scan—displays a cross sectional profile of the test material

- Automatic V-Path compensation for thin materials

SIZE: 146 x 61 x 28 mm (5.75" x 2.4" x 1.1")

WEIGHT: 140 g (4.9 oz.) without batteries

ALL GAGES COME COMPLETE with body and probe, couplant, protective rubber holster, belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiTector.net account

Detail



Catalog PosiTector UTG

English - Full Manual

Option

1 Calibration Test Block to fulfill both ISO and in-house quality control requirements: for Inch STDB1 or for Metric STDB1M

2 Bluetooth™ Printer receives data from Advanced models: PRINTERBT

3 Rechargeable Batteries—a set of eneloop NiMH AAA batteries: BATTREAAA4PK

4 AC Power Kit for continuous operation or battery charging—works in any country: USBAC

5 Protective Lens Shields protect the display from overspray and debris: LENSSHIELD-E



A Scan

A display in which the received pulse amplitude is represented along y axis and the travel distance of the ultrasonic pulse is represented along the x axis.











B Scan

A display in which a cross sectional profile of the test material is represented.
