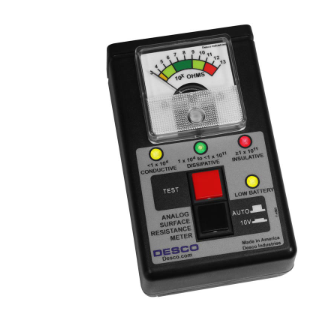

Desco 19786 模拟表面电阻计 (10^3~10^13 ohms.)

Resistance Ranges: 1 x 10^3  to 1 x 10^13 ohms @ 10 Volts, complies with ANSI/ESD S4.1

1 x 10^6 to 1 x 10^13 ohms @ 100 Volts, complies with ANSI/ESD S4.1

Accuracy: ±1/2 decade

Power Supply: 9V alkaline battery

Operating Temperature: 41ºF to 85ºF (5ºC to 30ºC)

Environmental: Indoor use only at altitudes

Requirements: less than 6500 ft. (2 km)

Maximum relative humidity of

80% up to 85°F (30°C)

Meter Dimensions: 4.5" x 2.8" x 2.1"

(11 cm x 7 cm x 5 cm)

Meter Weight: 0.5 lbs (0.2 kg)

Carrying Case Kit: 9.5" x 12.0" x 3.5"

Dimensions: (24 cm x 30 cm x 9 cm)

Weight: 12.0 lbs (5.4 kg)

External Electrode: 5 lbs (±2 oz), 2.5" in diameter
