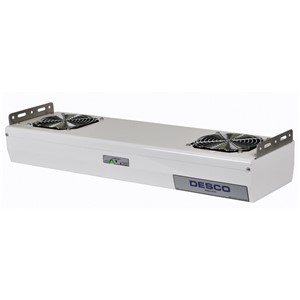

Desco 50682 顶置电离器 (2台风扇, 220VAC)

Input Voltage and Frequency:

100-120 VAC, 50/60 Hz or

220-230 VAC, 50/60 Hz

Power Consumption:

2-Fan Overhead: 24 W

 Dimensions:

2-Fan Overhead: 3.9" H x 6.6" W x 22.3" L (99 mm x 168 mm x 566 mm)

 Weight:

2-Fan Overhead: 7 lbs (3.2 kg)

 Balance (Offset Voltage) at 18": ±10 V typical; ±20 V maximum

Neutralization (Discharge) Time at 18": < 3 seconds

Airflow (three-speed fans): 2-Fan Overhead: 100-200 CFM

 Emitter Points: .050" diameter tungsten

Ion Emission: Steady-state DC with sense feedback

Fuse: 400 mA

High Voltage Power Supply: 5.5 kVDC nominal

Ozone: <0.05 ppm

Enclosure: Powder coated steel

Mounting Options: Rigid-mounted or suspended from ceiling

Lighting (50602, 50603 only): 700 lumen each Cool white color

Details

TB-6545 - Overhead Ionizer - Installation, Operation, and Maintenance
