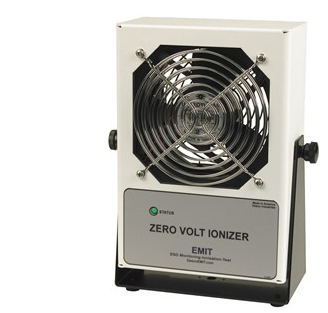

Desco 50690 离子风机 (12 W, 120 VAC)

Input Voltage and Frequency:  Internally selectable for 100-120 VAC

Power Consumption: 12 W

Dimensions (including stand): 9.5" H x 6.0" W x 3.1" D; (241 mm x 152 mm x 79 mm)

Weight 4.5 lbs (2.0 kg)

Balance (Offset Voltage) at 12": ±3 V typical; ±25 V maximum

Neutralization (Discharge) Time at 12": < 2 seconds

Airflow: Three-speed fan 50-100 CFM

Emitter Points: .050" diameter tungsten

Ion Emission: Steady-state DC with sense feedback

Fuse: 250 mA slow blow

High Voltage Power: 5.5 kVDC nominal

Ozone: <0.05 ppm

Enclosure: Powder Coat

TB-6533 - Benchtop Ionizer - Installation, Operation, and Maintenance Instructions
